Tescan UniTOM XL for Materials Science

Get in touch
UniTOM XL kopie
UniTOM XL kopie

Tescan UniTOM XL is a versatile micro-CT system designed for laboratories that require flexibility across sample sizes, imaging modes, and experimental setups. It enables high-resolution non-destructive 3D imaging as well as continuous dynamic CT for real-time in situ studies. With intuitive multiscale workflows and open software, UniTOM XL supports research on complex, heterogeneous materials, from structural composites to additively manufactured parts.

  • Scan entire samples up to 1 meter tall and 60 cm in diameter
  • Multiscale imaging workflow for zooming from whole parts to pores and cracks
  • Dynamic CT for visualizing how materials form, deform, and fail
  • In situ access with radiation-safe feedthroughs and slip-ring technology

HOW Tescan UniTOM XL SUPPORTS YOUR materials science research

Multiscale imaging

Move from large volumes to fine details within the same workflow using Volume of Interest Scanning.

High throughput

Fast detectors, high flux source, and automated batch workflows shorten time to results.

Flexible acquisition modes

Support for stitching, batch scanning, and multiple trajectories across up to 10 motorized axes.

True 4D dynamic CT

Capture material behavior in real time with continuous rotation and sub-3 seconds temporal resolution.

In situ connectivity

Radiation-safe feedthroughs and slip-ring integration allow the use of tensile, compression, or environmental stages.

Accessible architecture

Open software and hardware design make it straightforward to integrate custom equipment and workflows.

Tescan UNITOM XL

IN MATERIALS SCIENCE

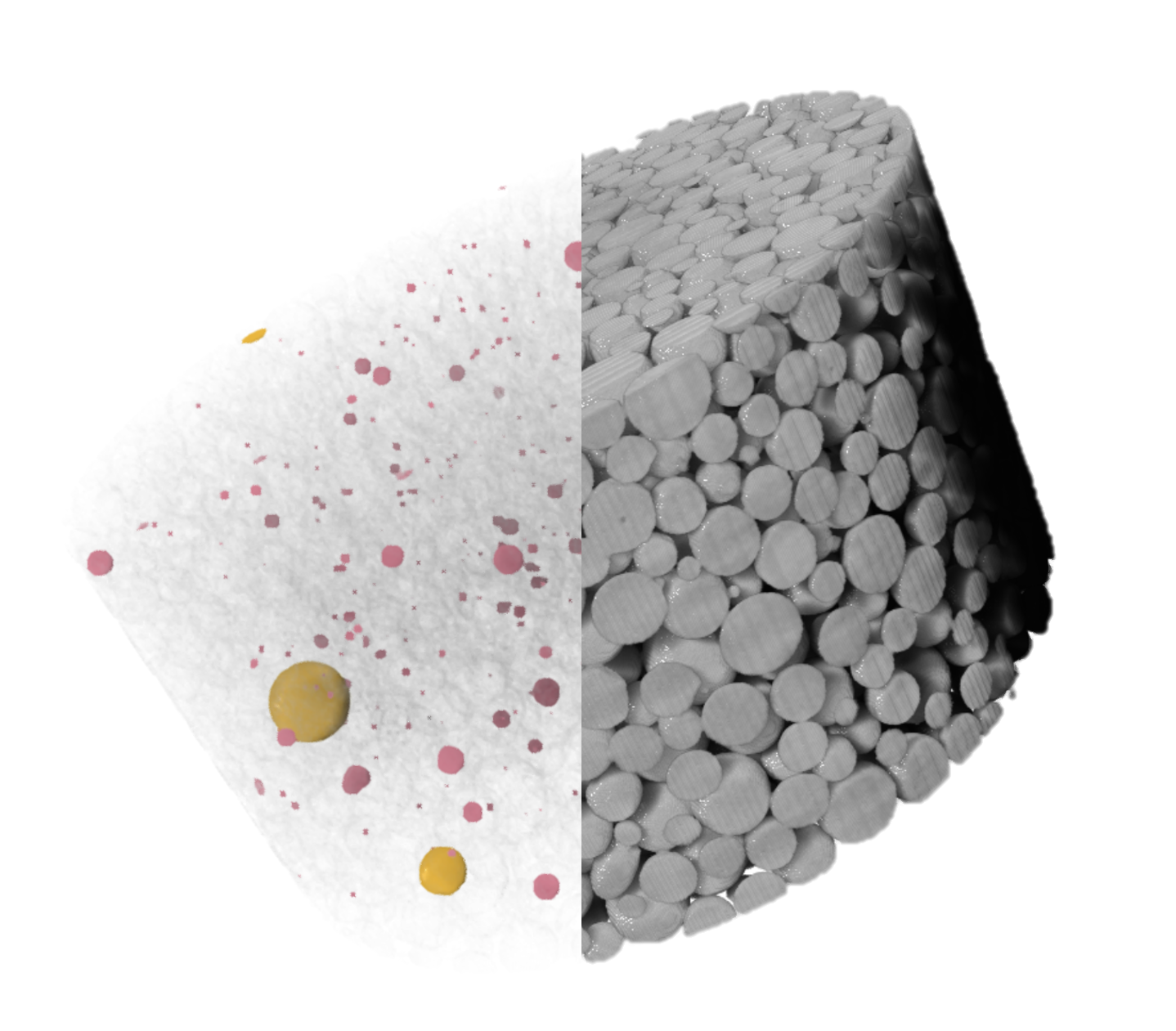

03_High resolution scan (1 μm voxel size) of AM metal powder, mapping of particles with voids (red) and impurities (yellow) (1)

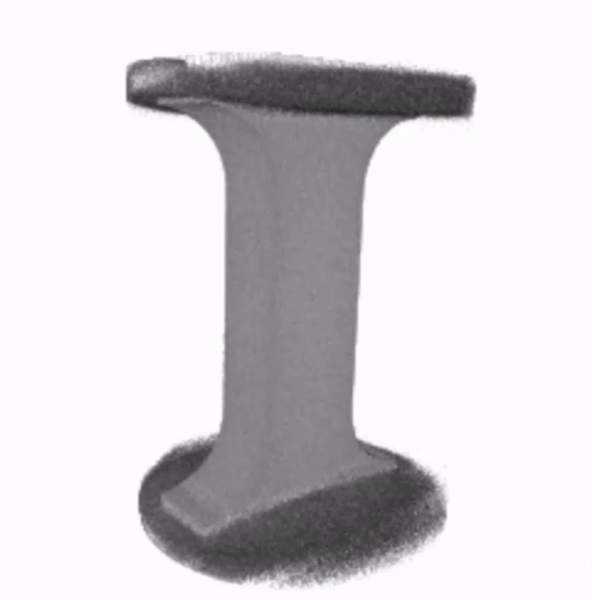

Capture Internal Deformation in Real Time

Analyze microstructural changes, internal stresses, and failure pathways in AM structures under load using dynamic micro-CT with no mechanical interruption.

See application

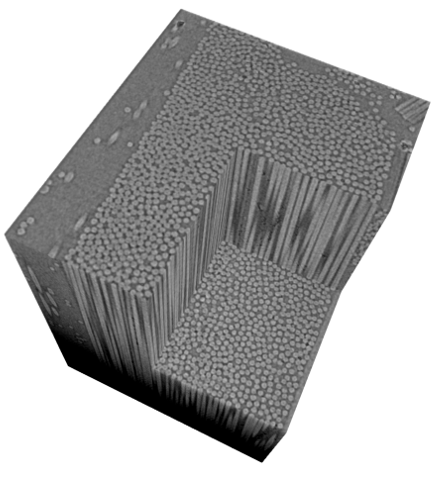

1_Carbon fiber reinforced polymer scanned at a voxel size of 400 nm, showing the contrast between the carbon fibers and the epoxy resin-Mar-09-2026-08-28-25-0525-AM

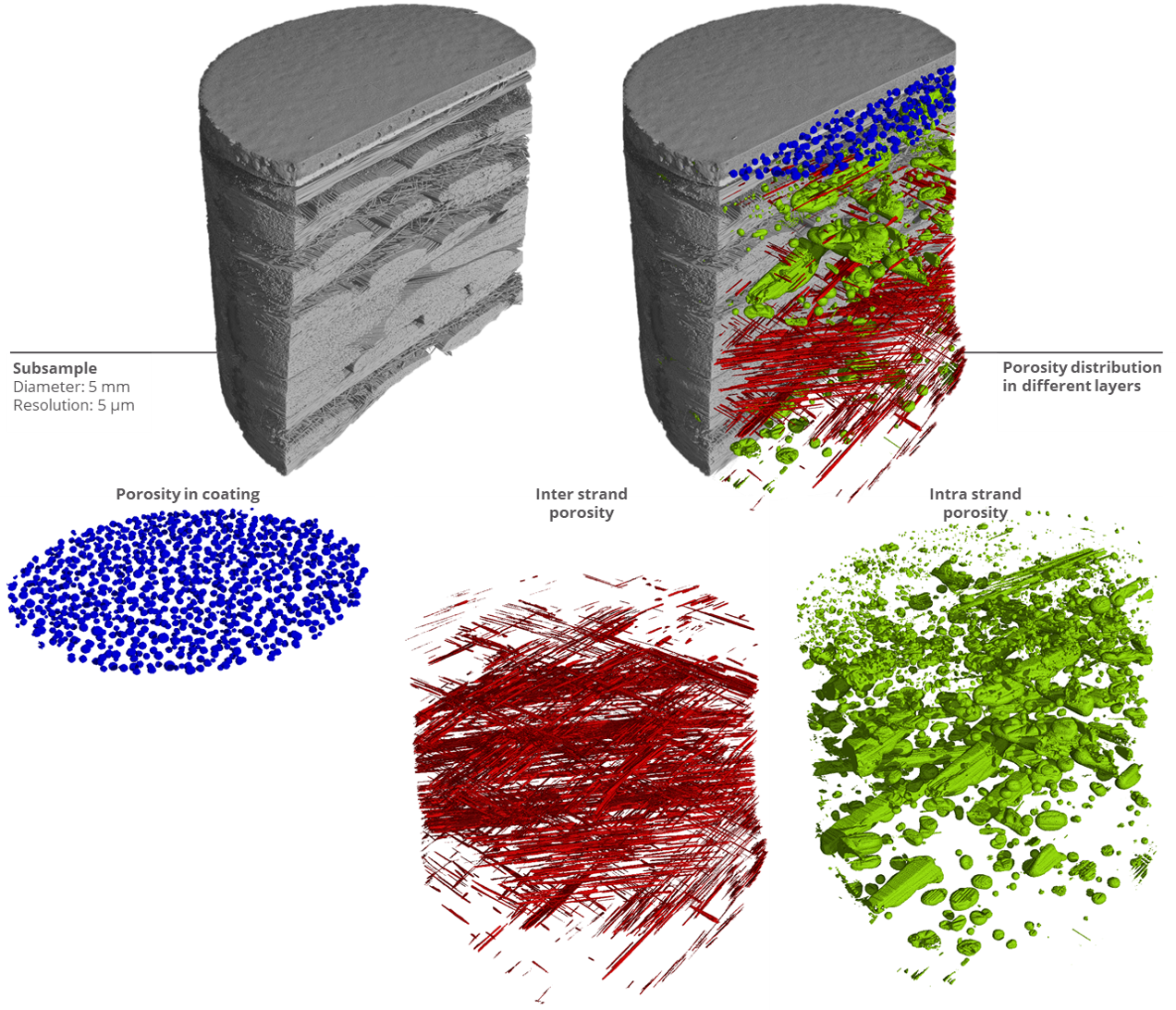

Quantify Porosity Across Scales in Composite Wind Blade Engineering

Capture internal porosity in full-scale components for composite wind blade engineering without cutting, repositioning, or compromising resolutio

See application

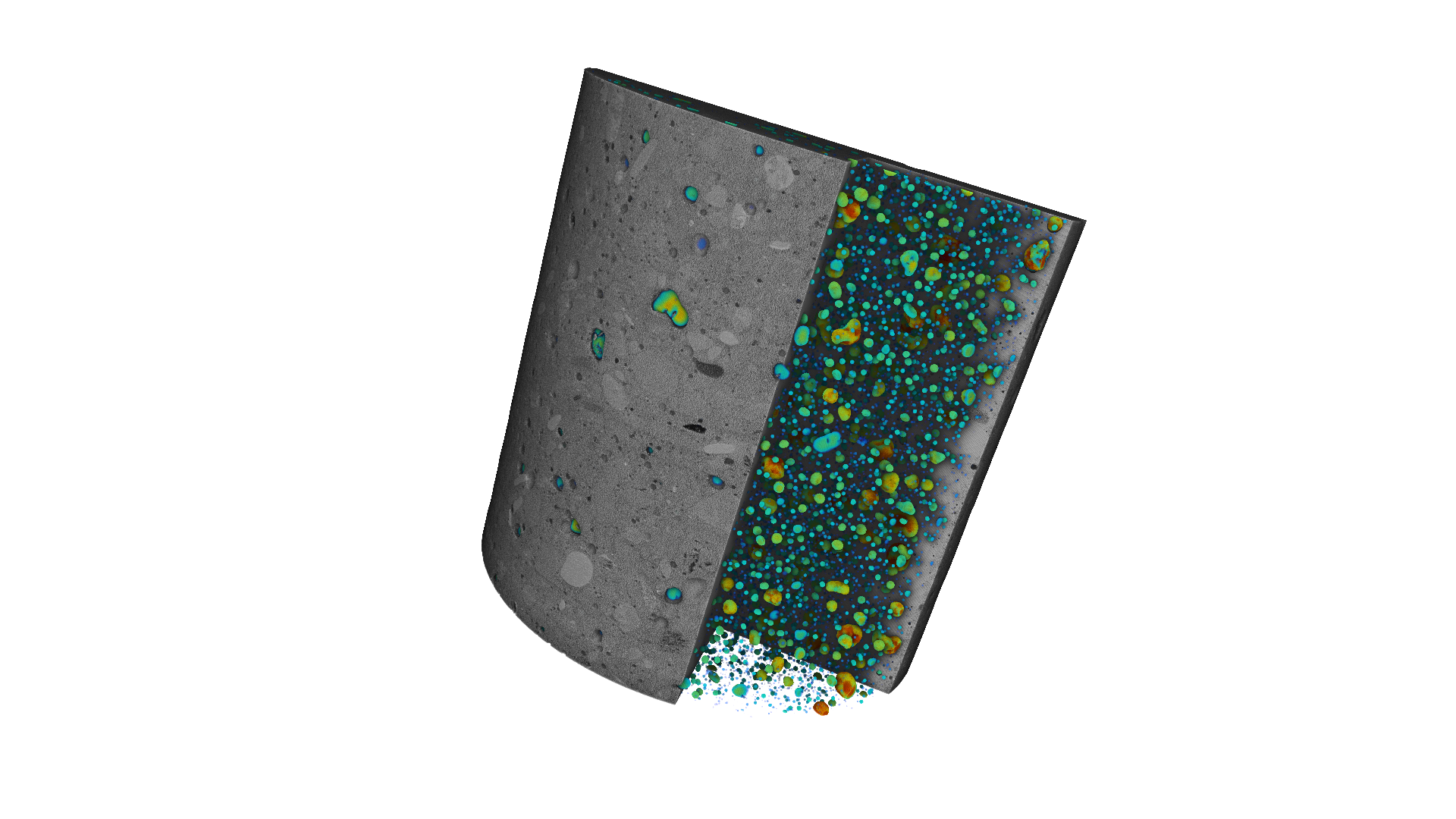

03_3D distribution of pores in concrete core, color coded according to size-2

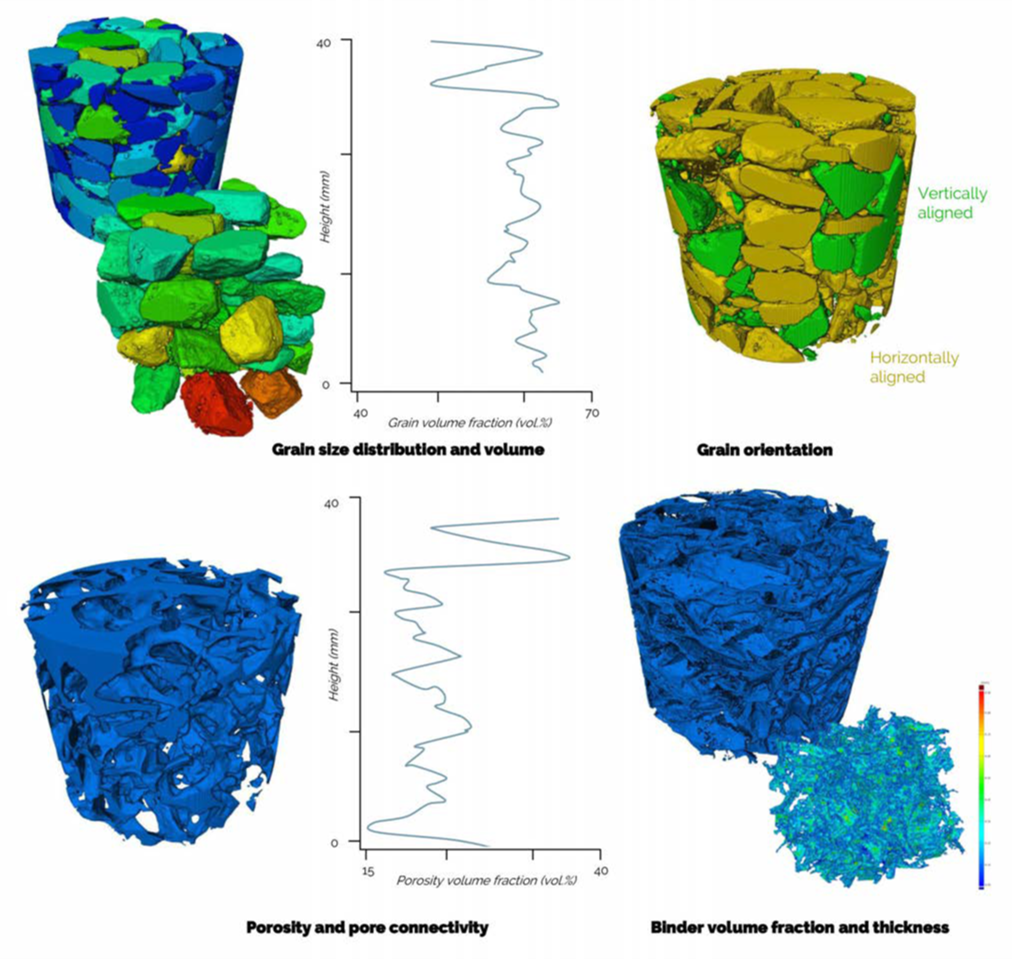

Quantify Internal Defects in Asphalt and Concrete without Sectioning

Perform non-destructive asphalt and concrete analysis at multiple scales without sacrificing context, resolution, or sample integrity.

See application

PANTHERA™ software

FAST RECONSTRUCTION AND VISUALIZATION

Panthera is optimized for rapid reconstruction and visualization of 3D and 4D data. It enables automated pipelines, batch processing, and real-time visualization of dynamic experiments.

  • GPU-accelerated 3D and 4D reconstruction

  • Batch reconstruction of large datasets

  • Visualization and export of volumes, slices, and movies

  • Alignment, registration, and analysis of 4D series

Panthera-AI
Unlocked content

Output Examples

Unlock
tescan insight

leave a contact to access

Get the most out of Tescan

This is more than information; it's an advantage. We've compiled our technical whitepapers, detailed product flyers, and on-demand webinars to provide you with the knowledge that makes a real difference. Sign up now to access the insights you need to make an impact.

TESCAN UniTOM XL for Materials Science

Technical specification
X-ray source

Voltage: 30–180 kV or 30–230 kV

Power: 300 W
Resolution

Spatial resolution: 3 µm (line pair)

Temporal resolution: < 3 seconds per rotation
Main detector

Pixel size: 2856 × 2856 px

Frame rate: up to 100 fps
Sample size and weight

Height and diameter: 1150 × 600 mm

Weight: up to 45 kg
Imaging envelope

Height: 1000 mm

Diameter: up to 600 mm
In situ connectivity

2 radiation-safe feedthroughs

Serial interface on top of rotation stage
X-ray source

Voltage: 30–180 kV or 30–230 kV

Power: 300 W

Resolution

Spatial resolution: 3 µm (line pair)

Temporal resolution: < 3 seconds per rotation

Main detector

Pixel size: 2856 × 2856 px

Frame rate: up to 100 fps

Sample size and weight

Height and diameter: 1150 × 600 mm

Weight: up to 45 kg

Imaging envelope

Height: 1000 mm

Diameter: up to 600 mm

In situ connectivity

2 radiation-safe feedthroughs

Serial interface on top of rotation stage
