UHR SEM with TriLens™ immersion optics for the ultimate characterization of nanomaterials

Tescan MAGNA^™

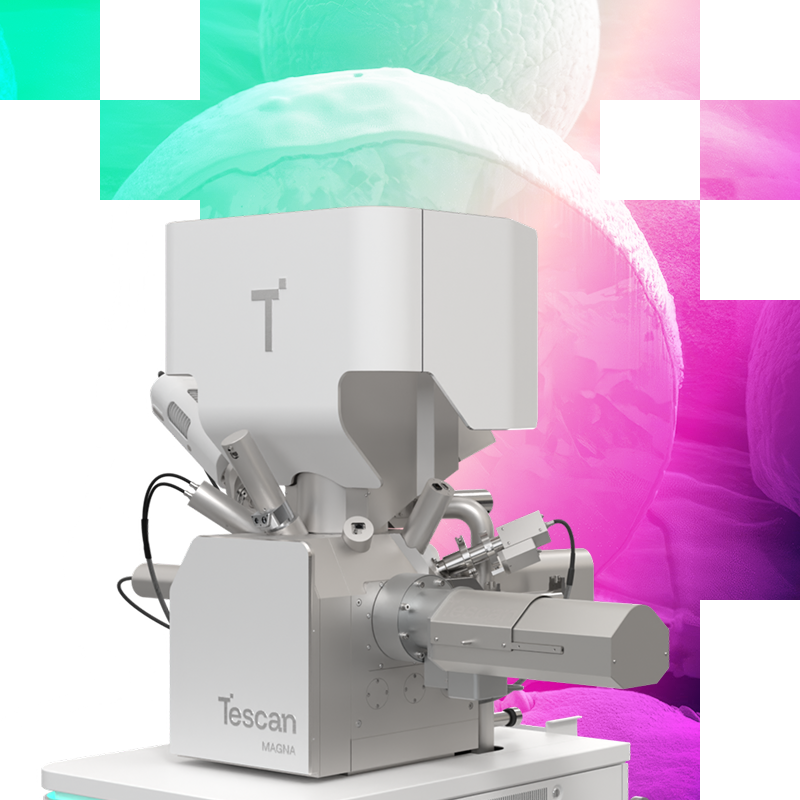

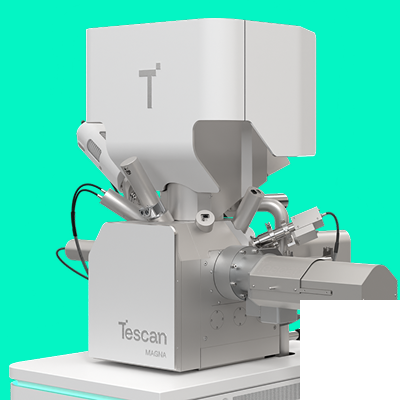

Tescan MAGNA^™ is designed for high-performance surface characterization of nanomaterials. Its Triglav™ SEM column delivers ultra-high-resolution imaging, particularly at low beam energies, and the integrated In-Beam detection system enables energy-filtered and angle-resolved backscattered electron contrast.

The Tescan Essence™ interface offers a customizable, intuitive environment with dedicated modules for streamlined operation.

Ultra-high resolution and high-contrast imaging of next-gen materials

Unique TriBE™ and TriSE™ detection for advanced nano characterization

Optimal imaging and analytical conditions guaranteed by Tescan In-Flight Beam Tracing™

Where Tescan MAGNA™

makes the difference

Sub-nanometer Resolution Across All Voltages

The Triglav™ SEM column delivers crisp, ultra-high-resolution imaging down to 0.5nm at 30 keV, ensuring accurate visualization of even the finest nanostructures.

Flexible SEM and STEM Imaging in One Platform

Observe surface topography and internal features with SEM and STEM, enabling comprehensive characterization of nanoparticles, nanotubes, and porous frameworks.

High-Contrast Detection for Complex Materials

The TriSE and TriBSE detection system provides selective energy and angular filtering, revealing structural and compositional details in black silicon, catalytic materials, and other challenging samples.

Effortless Imaging Setup and Switching

With In-Flight Beam Tracing™ and automated beam alignment, researchers can rapidly establish optimal conditions and transition between imaging and analytical modes without workflow interruptions.

Safe, Multi-User SEM Operation

Essence™ software with a live 3D collision model ensures straightforward operation, making MAGNA^™ safe to operate instrument.

Automation and Scripting for Advanced Workflows

Use VisualCoder SEM automation or the SEM Expert PI to standardize workflows, automate repetitive tasks, and or prototype new experiments.

Tescan MAGNA Applications

Tescan MAGNA in Materials Science

Tescan MAGNA is designed for researchers pushing the boundaries of science. Whether it’s imaging delicate porous frameworks, analyzing nanoparticle dispersions, or resolving complex nanostructures, MAGNA delivers clarity and precision at the sub-nanometer scale.

High-contrast nanoparticle imaging with TriSE and TriBSE detection systems
In-Flight Beam Tracing™ for effortless, repeatable imaging and rapid condition switching
Safe, multi-user operation enabled by Essence™ software and live 3D collision modeling

Unlocked content

Get the most out of Tescan

This is more than information; it's an advantage. We've compiled our technical whitepapers, detailed product flyers, and on-demand webinars to provide you with the knowledge that makes a real difference. Sign up now to access the insights you need to make an impact.

Tescan MAGNA™

Technical specification

Electron Optics
	Electron Beam Column	Triglav™ UHR-SEM Column
	Electron Source	Schottky field electron emitter
	Electron Beam Resolution	1.2 nm @ 1 keV 0.9 nm @ 1 keV with sample bias (BDT) 0.6 nm @ 15 keV 0.5 nm @ 30 keV STEM
	Magnification	4x to 2,000,000x
	Electron Beam Landing Energy Range	200 eV - 30 keV (< 50 eV with BDT)
	Probe Current	2 pA – 400 nA (continuosly adjustable)
Detectors
	Standard Detectors	SE detector (Everhart-Thornley chamber detector) In-column SE/Mid-Angle BSE detector (InBeam SE/Mid-Angle BSE) In-column BSE detector with energy filtering (In-Beam f-BSE) Chamber View IR Camera
	Optional Detectors*	LE-BSE detector (low-energy, scintillator type, mot.) 4Q LE-BSE detector (low-energy, solid state, 4 quadrants, mot.) R-BSE detector (scintilator type, mot.) HADF R-STEM (BF, DF, HADF, mot.; holder for up to 8 grids) CL detectors Optical Navigation and Correlation Camera (ONCam) GSD (Gaseous Secondary electron Detector)
	Optional Analyzers*	Tescan (Dual) Essence EDS (integrated) 3rd party EDS 3rd party EBSD 3rd party WDS Confocal Raman microscope with spectrometer (RISETM)
	Accessories	pA meter incl. touch alarm function Integrated Plasma Cleaner (Decontaminator) Beam Deceleration Technology (BDT)* Electrostatic Beam Blanker* Electron Beam Lithography package* Load Lock (manual or motorized)* Stage Extensions and modifications*
Stage & Sample
	Chamber type	GM chamber (20+ ports)**
	Stage	Motorized, 5-axis compucentric stage
	X & Y axis travel range	130 mm
	Z axis travel range	96 mm
	Rotation	Compucentric, 360° (continuous)
	Tilt range	Compucentric, -70° to +90°
	Max. specimen height	92 mm (133 mm without stage rotation)
	Max. specimen size	180 mm diameter with full XY moves, rotation, no tilt (larger samples possible with limited stage travel and rotation)
	Maximum specimen weight	8,000 g (full XYZ moves) 1,000 g (full XYZRT moves)
Vacuum system
	Pump types	Oil-free
	Vacuum options	MultiVac mode (up to 500 Pa (N2 or H2O)
	*Optional and other detectors, analyzers and accessories available upon request	**Different chamber type available upon request

Electron Optics
Electron Beam Column	Triglav™ UHR-SEM Column
Electron Source	Schottky field electron emitter
Electron Beam Resolution	1.2 nm @ 1 keV 0.9 nm @ 1 keV with sample bias (BDT) 0.6 nm @ 15 keV 0.5 nm @ 30 keV STEM
Magnification	4x to 2,000,000x
Electron Beam Landing Energy Range	200 eV - 30 keV (< 50 eV with BDT)
Probe Current	2 pA – 400 nA (continuosly adjustable)
Detectors
Standard Detectors	SE detector (Everhart-Thornley chamber detector) In-column SE/Mid-Angle BSE detector (InBeam SE/Mid-Angle BSE) In-column BSE detector with energy filtering (In-Beam f-BSE) Chamber View IR Camera
Optional Detectors*	LE-BSE detector (low-energy, scintillator type, mot.) 4Q LE-BSE detector (low-energy, solid state, 4 quadrants, mot.) R-BSE detector (scintilator type, mot.) HADF R-STEM (BF, DF, HADF, mot.; holder for up to 8 grids) CL detectors Optical Navigation and Correlation Camera (ONCam) GSD (Gaseous Secondary electron Detector)
Optional Analyzers*	Tescan (Dual) Essence EDS (integrated) 3rd party EDS 3rd party EBSD 3rd party WDS Confocal Raman microscope with spectrometer (RISETM)
Accessories	pA meter incl. touch alarm function Integrated Plasma Cleaner (Decontaminator) Beam Deceleration Technology (BDT)* Electrostatic Beam Blanker* Electron Beam Lithography package* Load Lock (manual or motorized)* Stage Extensions and modifications*
Stage & Sample
Chamber type	GM chamber (20+ ports)**
Stage	Motorized, 5-axis compucentric stage
X & Y axis travel range	130 mm
Z axis travel range	96 mm
Rotation	Compucentric, 360° (continuous)
Tilt range	Compucentric, -70° to +90°
Max. specimen height	92 mm (133 mm without stage rotation)
Max. specimen size	180 mm diameter with full XY moves, rotation, no tilt (larger samples possible with limited stage travel and rotation)
Maximum specimen weight	8,000 g (full XYZ moves) 1,000 g (full XYZRT moves)
Vacuum system
Pump types	Oil-free
Vacuum options	MultiVac mode (up to 500 Pa (N2 or H2O)
	*Optional and other detectors, analyzers and accessories available upon request	**Different chamber type available upon request
