Designed for advanced material nanocharacterization

Integrated Retractable 4D-STEM Detector for SEM

4D STEM detector - hero - desktop-1
4D STEM detector - hero - mobile-1

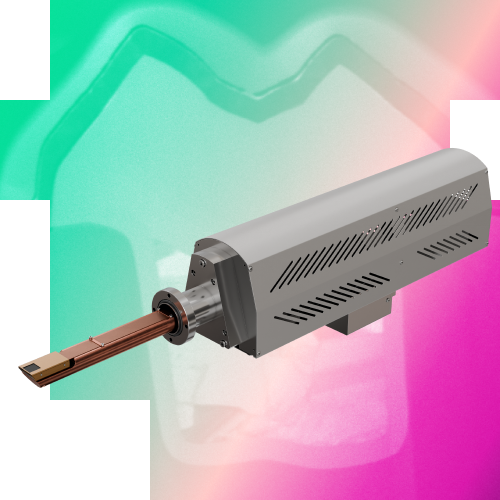

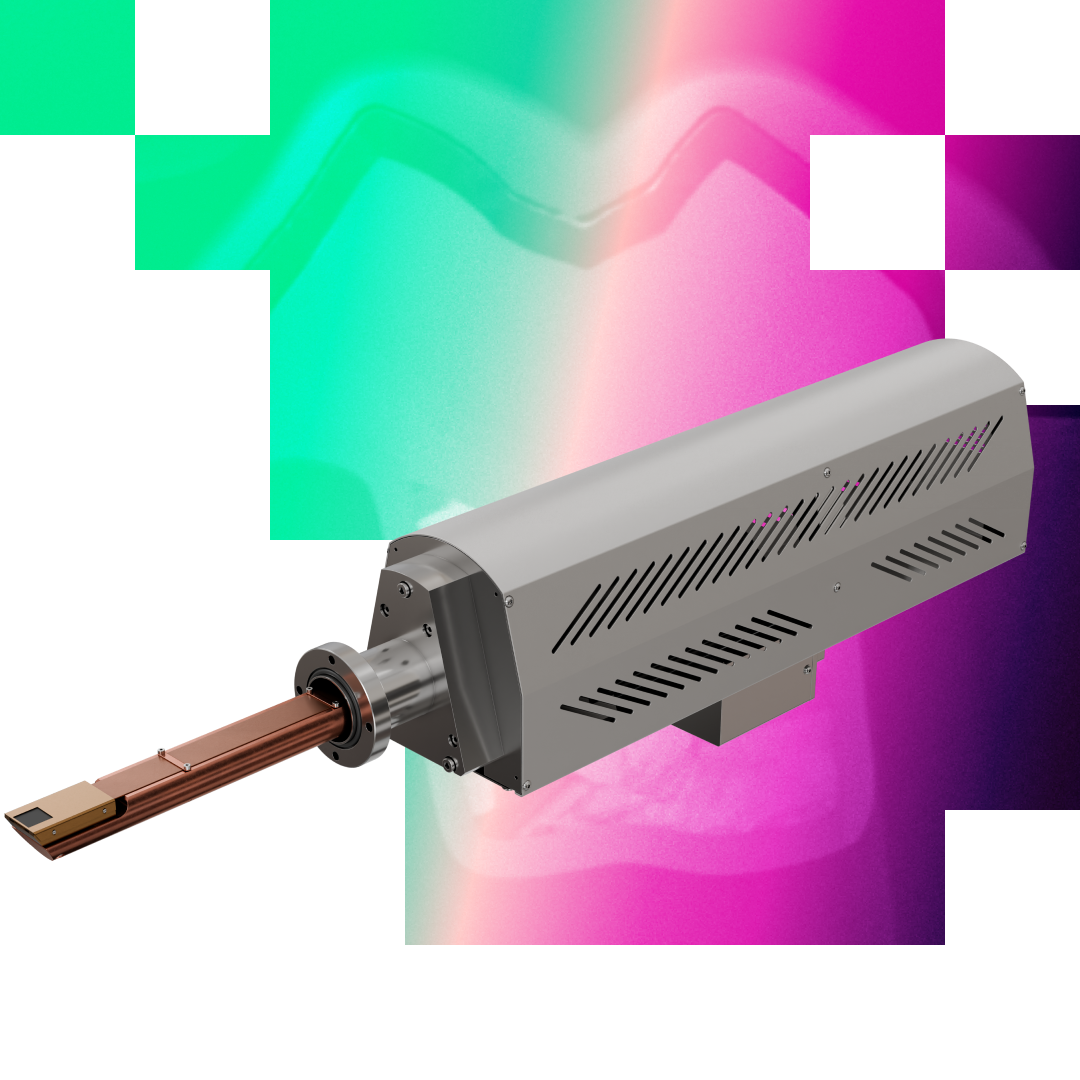

The fully retractable,SEM chamber-integrated 4D-STEM detector enables ultra-high-resolution nanoscale characterization for advanced materials science applications.

Designed to significantly extend the analytical capabilities of conventional SEM, the 4D-STEM detector provides both spatial and diffraction information at the level required for analyses of individual nanoparticles and nanotubes, without the need of sample transfer to a dedicated TEM.

Subsequent post-processing of 4D-STEM datasets delivers detailed insight into material structure, orientation mapping, and phase composition, making advanced material characterization faster and more accessible.

Moreover, the acquired datasets support repeated analysis without the need for sample remeasurement and are fully compatible with open-source software, enabling users to develop their own analysis methodologies.

With an integrated 4D-STEM detector, the SEM Tescan MIRA and Tescan CLARA™ offer robust and versatile platforms for a wide range of materials science workflows and applications.

  • SEM chamber-integrated, fully retractable 4D-STEM detector with synchronized beam scanning

  • Fast acquisition and high-resolution imaging (<1 nm) for sample evaluation and a broad range of applications

  • Accelerated nanoscale characterization for a wide range of materials, including nanoparticles and nanotubes, through crystallographic insights at every scan point

  • Reduced time to results for sample validation through structural insights acquired directly in the SEM

  • 4D-STEM datasets fully compatible with open-source software (e.g., LiberTEM, py4DSTEM, pixStem)
  •  Seamless integration into MIRA and CLARA platforms for advanced materials science applications and analysis

WHERE retractable 4D-STEM detector MAKES THE DIFFERENCE

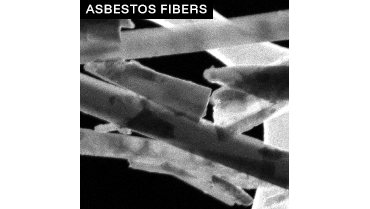

azbestos-02-370px

High-resolution imaging

STEM imaging mode enables sub-nanometer-resolution sample evaluation, providing accurate crystallographic information and supporting multidimensional analysis across a wide range of materials, including individual nanofibers, particles, or 2D materials.

In addition, SEMs operate at lower accelerating voltages (30 keV and below) than conventional TEMs, making them particularly well suited for beam-sensitive samples.



Extended analytical capabilities

The 4D-STEM detector enables advanced nanoscale characterization, including phase composition and crystal orientation, directly within the SEM, eliminating the need for sample transfer to a dedicated TEM.

Acquired 4D-STEM datasets can be reprocessed multiple times and are fully compatible with open-source analysis software such as LiberTEM, py4DSTEM, and pixStem. This offers flexibility in the development of new analysis methodologies and customized data-processing workflows for specific applications.

Flexible imaging contrast selection

Virtual apertures enable live-view acquisition and allow users to define custom bright-field and dark-field regions by selecting arbitrary angular ranges directly in Tescan Essence™ software, supporting flexible, application-specific contrast optimization and enhanced imaging capabilities.

Seamless integration

Full hardware and software integration of the retractable 4D-STEM detector in MIRA and CLARA platforms ensures intuitive, safe operation and seamless workflow control. Insertion and retraction of the detector are controlled with a single click in Tescan Essence™ software.

Unlocked content



Tescan Orage 2 APPLICATION EXAMPLES



[application examples in few words]



Unlock Tescan insight

leave a contact to access

Get the most out of Tescan

This is more than information; it's an advantage. We've compiled our technical whitepapers, detailed product flyers, and on-demand webinars to provide you with the knowledge that makes a real difference. Sign up now to access the insights you need to make an impact.

4D-STEM detector

Technical specification

Detector type

Solid state, hybrid pixel detector

Technology

Timepix 3 chip by AdvaScope, Peltier cooled

Chip parameters

256 × 256 pixel matrix; pixel size 55 µm × 55 µm

Detection limit

5 keV

Readout throughput

High throughput, 40 million hits·s¹·cm²

Acquisition mode

 Data-driven

Control

Fully integrated into Tescan EssenceTM, motorised

Image acquisition

Live imaging: up to 2 µs/pixel

2D imaging: Diffraction patterns and/or Kikuchi lines, Bright-Field and Dark-field imaging based on user-selectable virtual apertures

4D-STEM: data cubes

Protection

Integrated shutter and interlocks

Detector type

Solid state, hybrid pixel detector

Technology

Timepix 3 chip by AdvaScope, Peltier cooled

Chip parameters

256 × 256 pixel matrix; pixel size 55 µm × 55 µm

Detection limit

5 keV

Readout throughput

High throughput, 40 million hits·s¹·cm²

Acquisition mode

 Data-driven

Control

Fully integrated into Tescan EssenceTM, motorised

Image acquisition

Live imaging: up to 2 µs/pixel

2D imaging: Diffraction patterns and/or Kikuchi lines, Bright-Field and Dark-field imaging based on user-selectable virtual apertures

4D-STEM: data cubes

Protection

Integrated shutter and interlocks

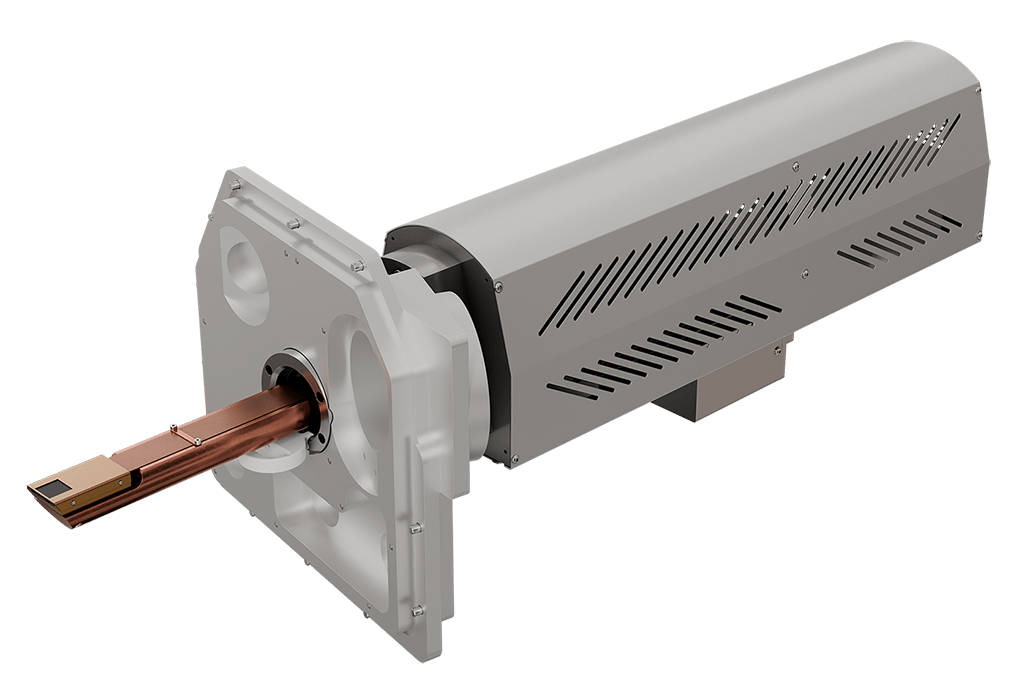

4D_STEM_isolated_priruba_left_05-1024px-1
