Tescan SOLARIS X 2 for Semiconductors

Solve package-level failure challenges with Tescan SOLARIS X 2 Plasma FIB-SEM. Designed for today’s complex IC packaging, SOLARIS X 2 combines the Mistral™ Xe Plasma FIB column with Rocking Stage, TRUE X-sectioning, and the Triglav™ UHR SEM to deliver deep, clean cross-sections and precise end-pointing.

Eliminate curtaining and ripple artifacts for reliable root-cause analysis

Locate subsurface cracks, voids, and delaminations with high-resolution SEM end-pointing

Prepare Ga+-free TEM lamellae efficiently, without contamination or loss of protection layers

Achieve consistent results across SiC, polyimide, glass, and advanced packaging materials

Boost productivity with automated alignments and high-current Xe+ beam milling

HOW Tescan SOLARIS X 2 SUPPORTS YOUR SEMICONDUCTOR ANALYSIS

Deliver Deep, Artifact-Free Cross Sections

Achieve clean, reliable results on complex IC packages using Rocking Stage and TRUE X-sectioning.

Pinpoint Subsurface Defects with Precision

Detect cracks, voids, and delaminations using Triglav™ UHR SEM end-pointing at the FIB-SEM coincidence point.

Prepare Ga⁺-Free TEM Lamellae Efficiently

Protect device integrity while producing high-quality, contamination-free lamellae with the Mistral™ Xe Plasma FIB column.

Cross-Section the Toughest Materials

Section SiC, polyimide, glass, and ceramics with uniform surfaces, free of curtaining and terrace artifacts.

Boost Throughput Across Workflows

Leverage 3.3 µA Xe+ beam currents and automated column alignments for faster, more consistent sample preparation.

Maintain Clarity at Every Scale

Resolve fine package details with Triglav™ UHR SEM imaging at accelerating voltages down to 500 eV.

SOLARIS X 2

FOR SEMICONDUCTOR RESEARCH APPLICATIONS

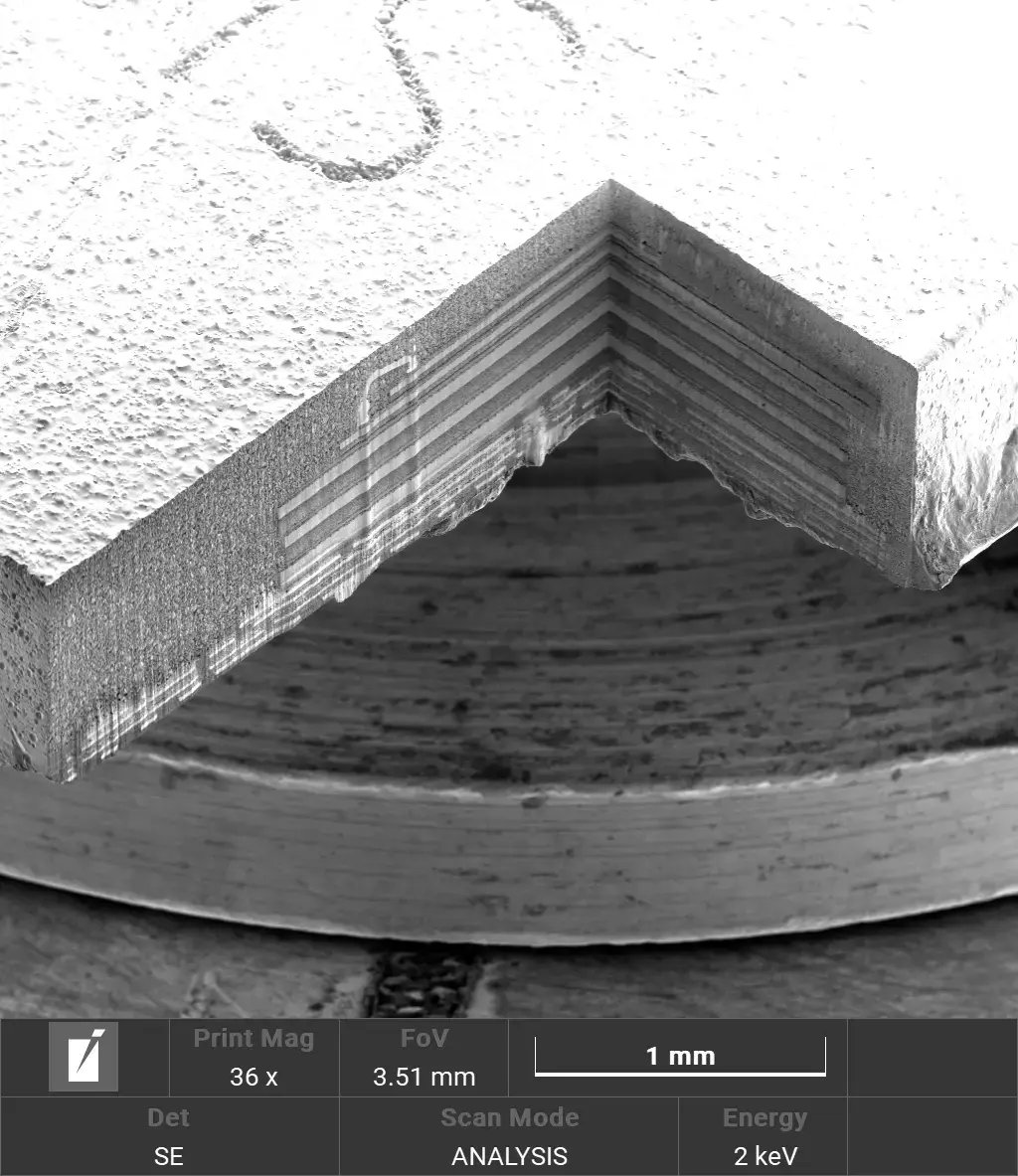

2_Laser milling through entire stack of memory dies_1x-2-1

Accelerate Failure Analysis with Hybrid Laser and Plasma FIB Workflow

Achieve accurate, geometry-true cross-sections with the Hybrid Laser and Plasma FIB Workflow using CAD/GDS overlay navigation.

See application

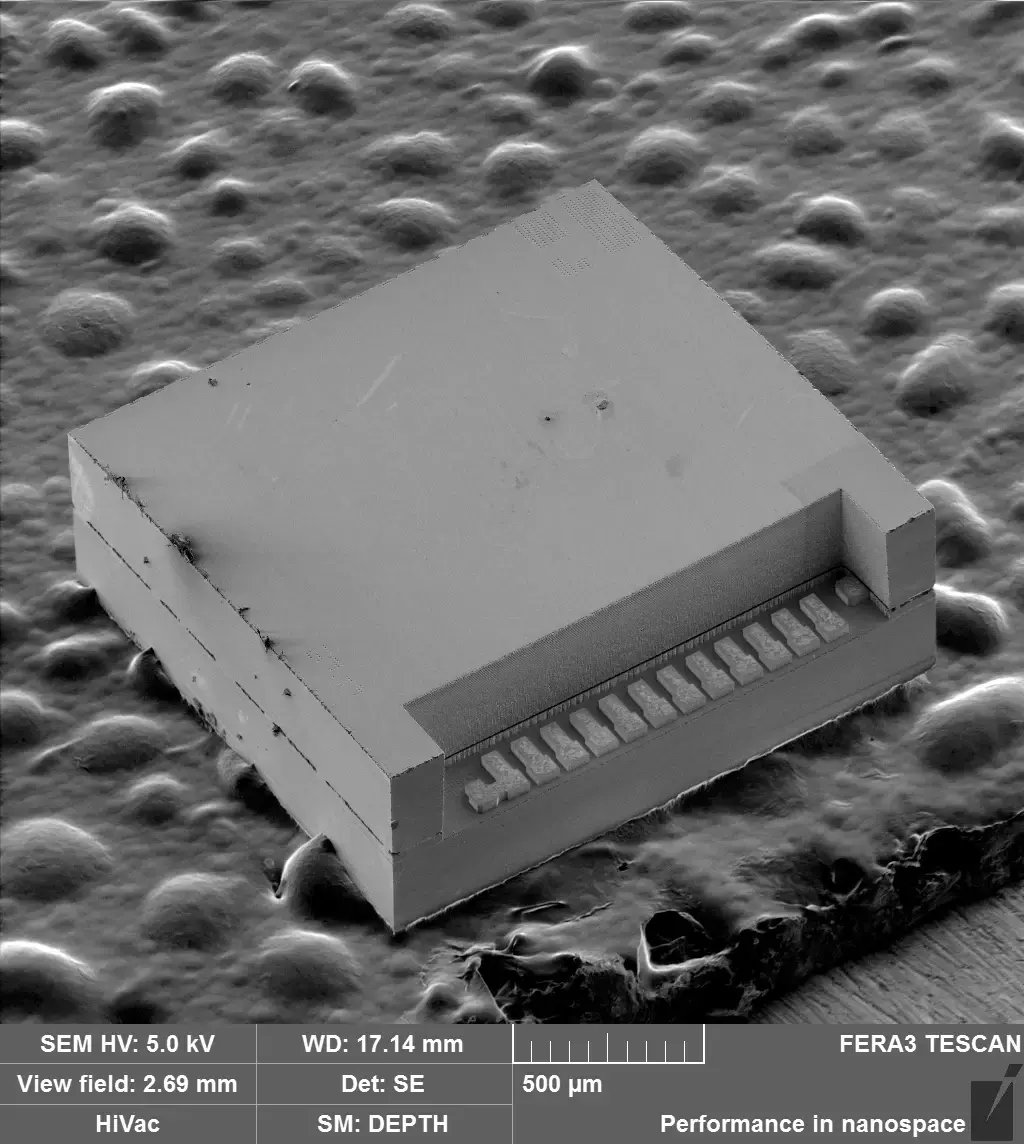

Reveal Bonding Layers Clearly During Physical Failure Analysis of MEMS Motion Sensors

Perform physical failure analysis of MEMS motion sensors using Tescan SOLARIS X 2 with artifact-free cross-sectioning that protects bonding layers and eliminates delamination risks.

See application

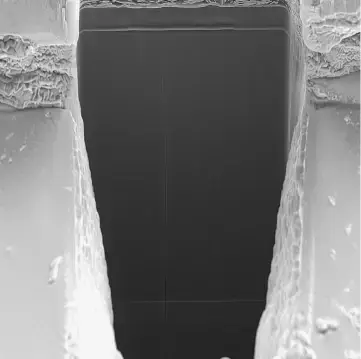

01_Several hundred um deep cross-section of the OLED display_1x-1-1

Prepare 1 mm OLED Display Cross Sections Without Delamination

Create a reliable OLED display cross section using Tescan SOLARIS X 2 with precise layer control that preserves structure and avoids sample damage.

See application

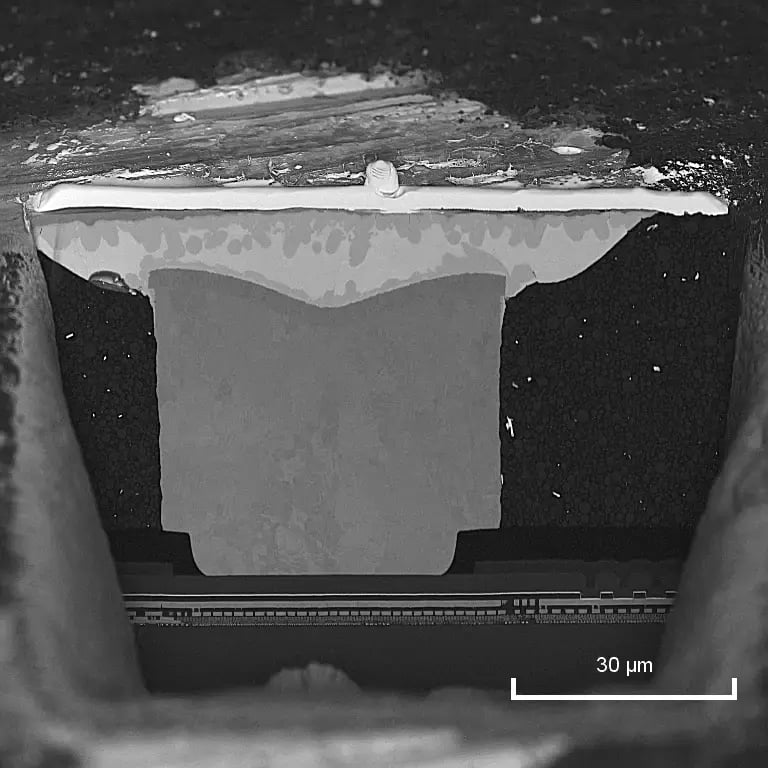

6_Copper-pillar-Plasma-FIB-cross-sectioning 1_1x-1-1

Enhance SEM Observation During FIB Cross-Sectioning

Apply Tescan SOLARIS X 2 with Rocking Stage to achieve smooth, artifact-free plasma FIB cross sections for TSVs, solder bumps, and MEMS packaging structures.

See application

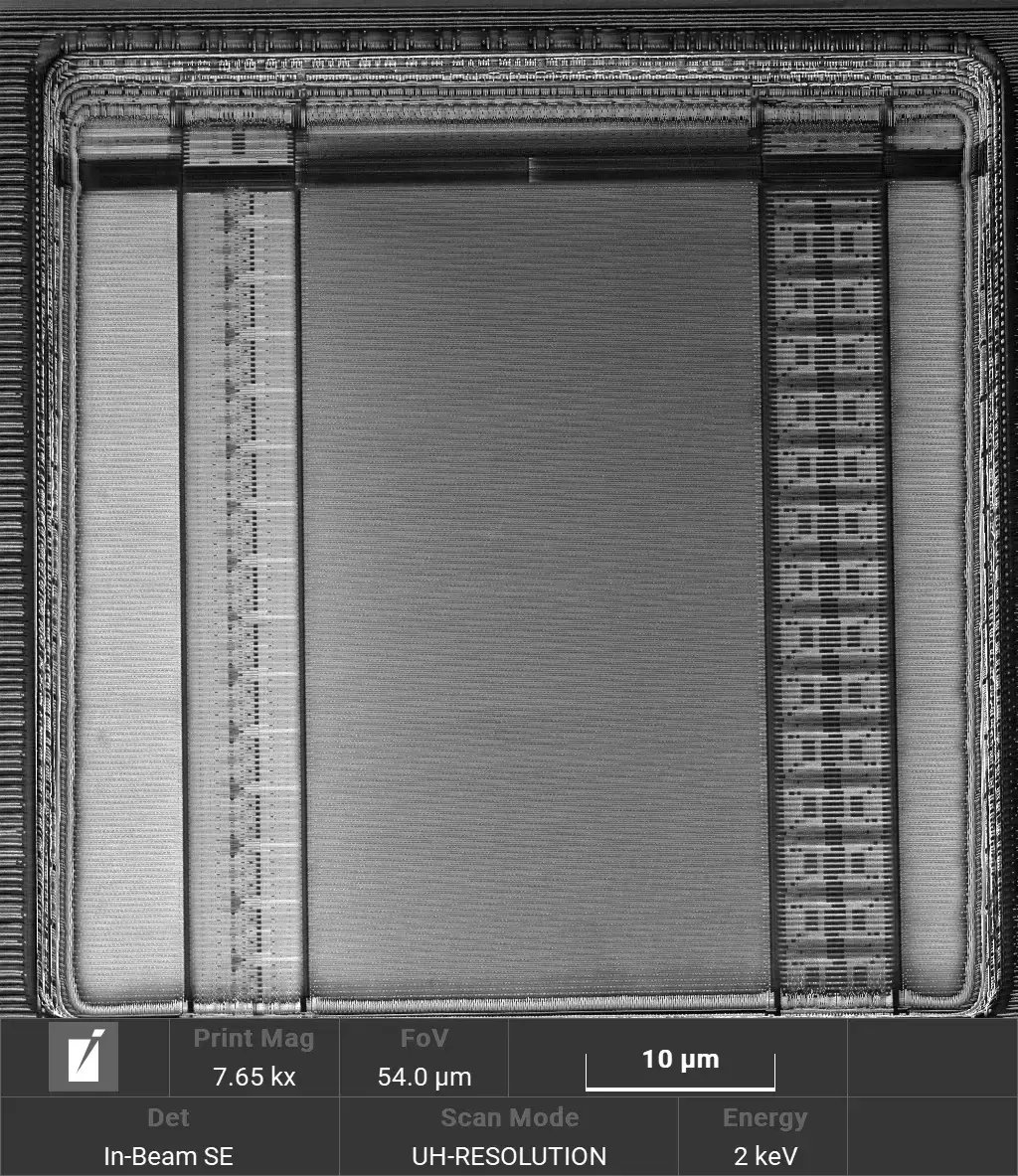

1_Delayering of 7nm FinFET CPU using Nanoflat chemistry_1x-1-1

Streamline TEM Lamella Preparation from 7nm Devices

Perform TEM lamella preparation on 7nm node transistors using Tescan SOLARIS X 2 with in-situ delayering and thinning that maintain structural fidelity and eliminate air exposure.

See application

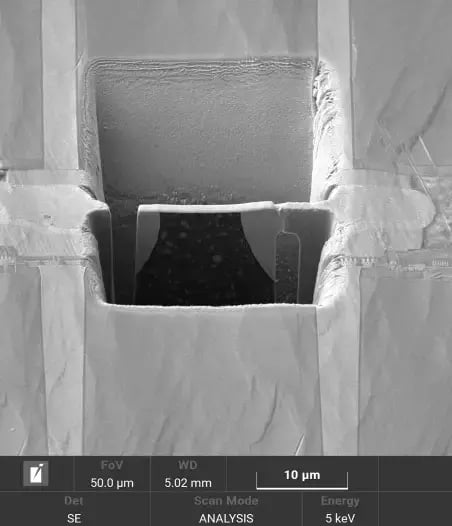

Achieve Consistent 80 nm Lamella for DRAM Failure Analysis

Use Tescan SOLARIS X 2 with Mistral™ Xe plasma FIB for TEM sample preparation of SDRAM devices. Produce thin, Ga-free lamellae that preserve interface quality and elemental contrast at the 66 nm node.

See application

Tescan TRUE X-SECTIONING™

CROSS SECTIONS WITHOUT COMPROMISE

Tescan TRUE X-sectioning™ gives you clean, reliable cross sections for package-level failure analysis. Precut silicon masks combined with optimized plasma FIB milling suppress ripple artifacts that would otherwise obscure critical features. When paired with Rocking Stage, you also eliminate curtaining, achieving smooth, uniform surfaces, even in challenging materials like SiC, polyimide, and glass.

With TRUE X-sectioning™, you get cross sections you can trust for defect detection and high-resolution imaging. It streamlines your workflows and improves the consistency of your results.

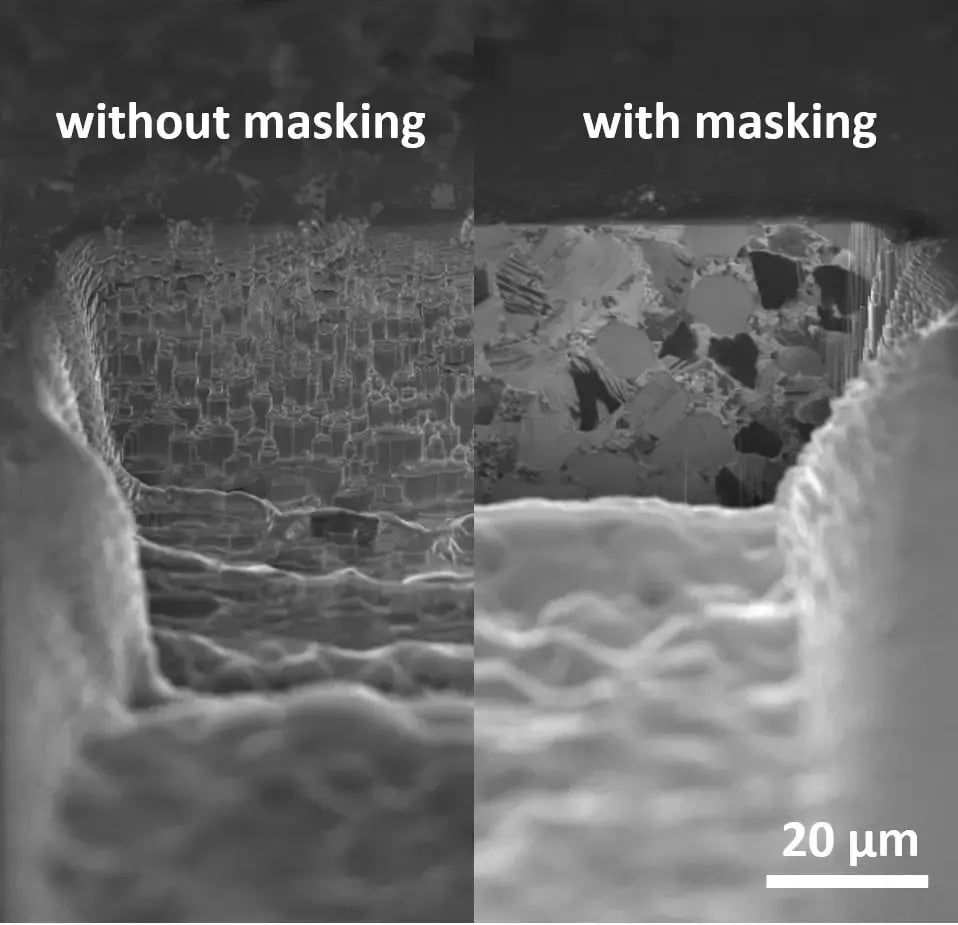

05_SiC Plasma FIB cross-sectioning comparison_1x-1-1

Unlocked content

Output Examples

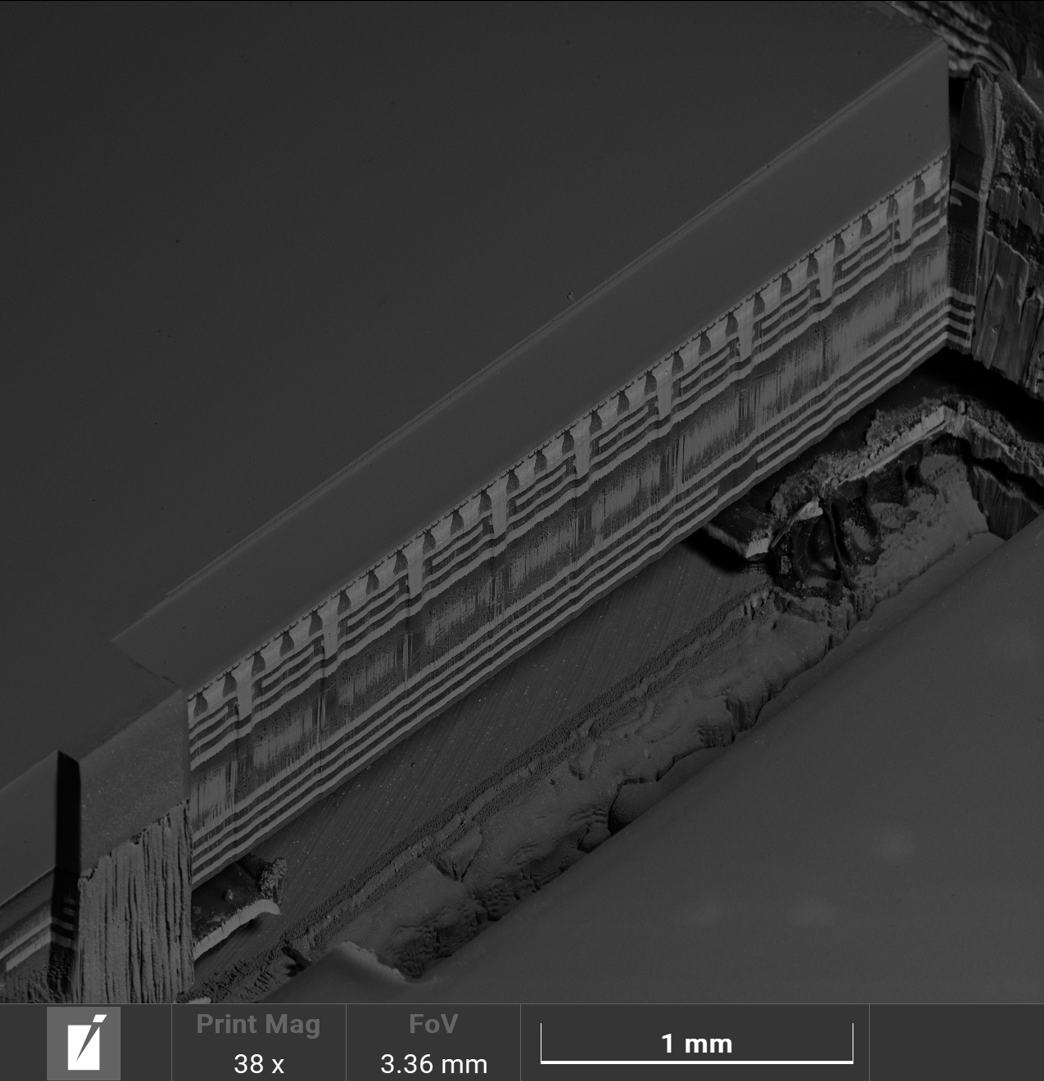

Tescan SOLARIS X 2 Plasma FIB-SEM 4 mm package-level cross-section prepared by laser for semiconductor failure analysis

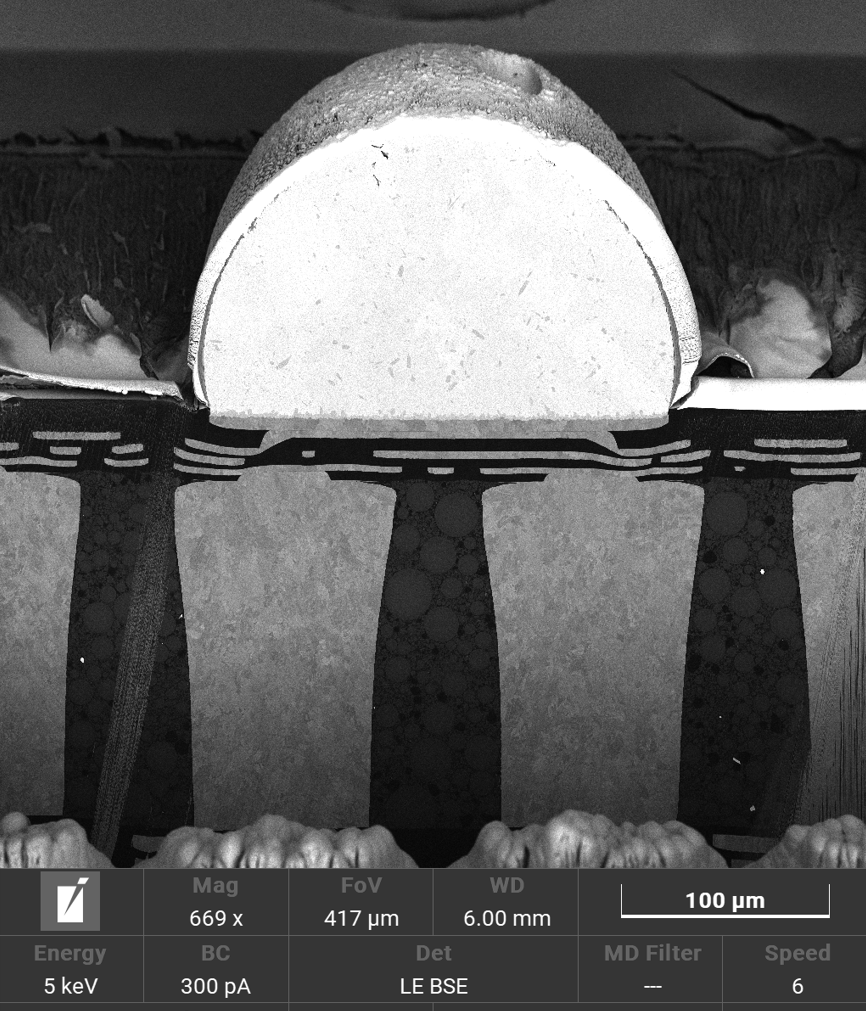

Tescan SOLARIS X 2 solder bump cross-section with Pt protection layer prepared using Plasma FIB-SEM for package inspection

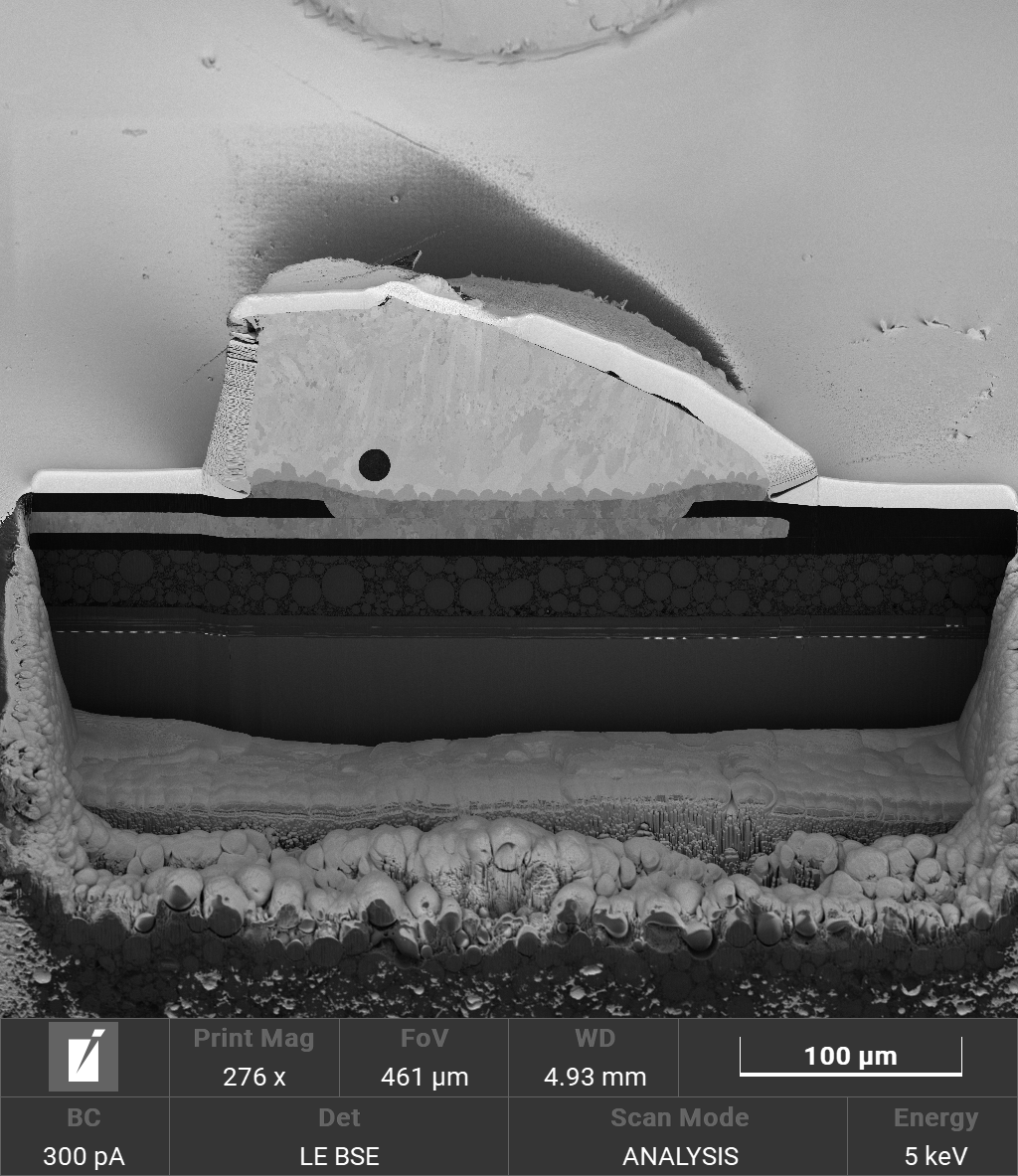

Tescan SOLARIS X 2 500 µm wide cross section of solder bump, including under-bump metallurgy and IC circuits, imaged with LE-BSE detector at 5 keV

Get the most out of Tescan

This is more than information; it's an advantage. We've compiled our technical whitepapers, detailed product flyers, and on-demand webinars to provide you with the knowledge that makes a real difference. Sign up now to access the insights you need to make an impact.

TESCAN SOLARIS X 2 for Semiconductors

Technical specification

SOLARIS X 2	Electron column: Triglav™ UHR SEM with immersion optics
	Ion column: Mistral™ Xe Plasma FIB, 500 eV–30 keV, probe current <1 pA–3.3 µA, resolution <10 nm @ 30 keV
	Stage: Motorized 5-axis Compucentric Stage with Tescan Rocking Stage
	Lift-out compatibility: in situ with TEM AutoPrep™ Pro or ex situ with Tescan EXLO™
	Optical microscope: Tescan ONCam™ Navigation Camera
	Nanomanipulator: Tescan OptiLift™
	Grid compatibility: NCD slotted grids, EXpressLO PGrids™ (Cu, Ni); for standard and inverted TEM samples
	Detectors: In-beam SE and BSE detectors; STEM imaging at 0.5 nm resolution @ 30 keV
	Automation: Scheduled electron/ion column alignments for continuous system readiness

SOLARIS X 2

Electron column: Triglav™ UHR SEM with immersion optics

Ion column: Mistral™ Xe Plasma FIB, 500 eV–30 keV, probe current <1 pA–3.3 µA, resolution <10 nm @ 30 keV

Stage: Motorized 5-axis Compucentric Stage with Tescan Rocking Stage

Lift-out compatibility: in situ with TEM AutoPrep™ Pro or ex situ with Tescan EXLO™

Optical microscope: Tescan ONCam™ Navigation Camera

Nanomanipulator: Tescan OptiLift™

Grid compatibility: NCD slotted grids, EXpressLO PGrids™ (Cu, Ni); for standard and inverted TEM samples

Detectors: In-beam SE and BSE detectors; STEM imaging at 0.5 nm resolution @ 30 keV

Automation: Scheduled electron/ion column alignments for continuous system readiness
