Why FIB Has Become the Gold Standard for TEM Specimen Preparation

Scanning/Transmission Electron Microscopy (S/TEM) is one of the most powerful techniques available for investigating materials at the nano- and picoscale. Yet the ability to perform any S/TEM  (colloquially referred to as just „TEM“) analysis depends on a critical factor that is often overlooked: the quality of the prepared specimen.

As Lucille Giannuzzi notes in her co-authored chapter FIB of TEM Specimens, the results obtained from TEM or STEM analysis are only as good as the specimen being examined. Over the past two decades, this reality has driven a significant shift in how researchers prepare specimenss for electron microscopy.

Today, Focused Ion Beam Scanning Electron Microscopy (FIB-SEM) has become the dominant approach for TEM specimen preparation.

A Technological Shift in Specimen Preparation

For many years, TEM specimens were prepared using techniques such as mechanical polishing, electropolishing, broad ion milling, and ultramicrotomy. These methods remain valuable for specific applications, but they share a common limitation: they are generally not site-specific and require many hours of initial sample preparation to generate a TEM specimen

Researchers often needed a combination of skill, experience, and luck to ensure that the final electron-transparent thin area of a specimen contained the exact feature they wanted to investigate.

The emergence of dual-platform FIB-SEM systems fundamentally changed this workflow. By combining a focused ion beam column with a scanning electron microscope in a single instrument, researchers gained the ability to prepare specimens directly from precisely selected regions of interest, using the FIB to mill away everything but the region of interest while monitoring the process with the SEM.

The impact of this transition has been remarkable. Literature trends show a rapid increase in the use of FIB for TEM specimen preparation following the widespread adoption of modern FIB-SEM platforms in the early 2000s.

The Power of Site-Specific Preparation

The primary advantages of FIB specimen preparation are its ability to target an exact location within a bulk sample at unprecedented speed.

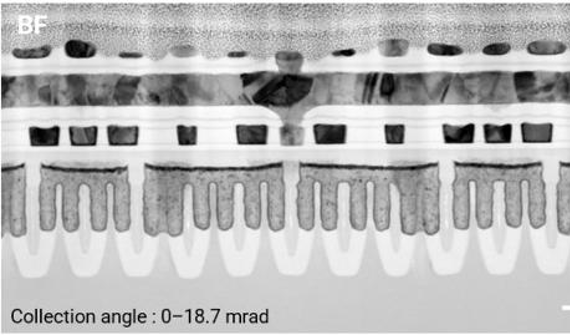

Whether a researcher is interested in a grain boundary, a material interface, a defect, or even a single transistor within an integrated circuit, FIB enables preparation of a TEM specimen containing that precise feature.

This level of site specificity dramatically improves the efficiency of TEM investigations. Instead of examining large regions in the hope that the feature of interest is present, researchers can directly access the area they need to study.

According to Giannuzzi, FIB preparation can target regions with spatial precision measured in only tens of nanometers. This capability has become increasingly important as materials, devices, and structures continue to shrink in size.

Faster Workflows, Better Results

Beyond precision, speed is another major reason for the widespread adoption of FIB.

Traditional preparation methods often involve multiple processing steps and significant operator time. In contrast, a properly trained FIB operator can prepare a TEM specimen rapidly while maintaining control over specimen quality and thickness.  In addition, improvements in FIB automation significantly reduces the time required for an operator to sit in front of the instrument.

The resulting specimen is typically more uniform in thickness, with mininal specimen preparation artifacts, making subsequent TEM analysis easier and more reliable.

For many applications, researchers can move from a semiconductor wafer or integrated circuit sample to a finished TEM specimen in less than an hour.

Enabling Modern Cryogenic Workflows

Cryogenic electron microscopy and cryogenic specimen preparation have become increasingly important across scientific disciplines.

Historically, options for cryogenic specimen preparation were limited. While ultramicrotomy could be performed at low temperatures, challenges related to specimen damage and limited site specificity often remained.

Modern FIB workflows have expanded these possibilities. Researchers can now prepare specimens under cryogenic conditions and maintain those conditions during transfer and analysis, reducing preparation-induced damage and enabling the investigation of temperature-sensitive materials.

Supporting Advanced In-Situ Experiments

Another reason for the growing importance of FIB preparation is its role in enabling advanced experimental platforms.

Modern TEM investigations increasingly include heating, electrical testing, mechanical testing, and other in-situ experiments. These approaches require small, carefully prepared specimens that can be precisely positioned onto specialized testing platforms.

FIB systems make this possible by allowing researchers to isolate the region of interest, manipulate it with micromanipulators, and securely attach it to experimental holders.

Without FIB preparation, many of these advanced experiments would be difficult or impossible to perform.

Why FIB Became the Preferred Method

The success of FIB preparation stems from its unique combination of capabilities:

• Precise site-specific targeting

• Fast specimen preparation

• Consistent specimen thickness

• Compatibility with cryogenic workflows

• Support for advanced in-situ experimentation

• Ability to prepare specimens from highly complex devices and materials

• Minimal damage and artifacts

As a result, FIB has evolved from a specialized novelty preparation technique into the dominant and necessary method for producing TEM specimens across research and industry.

Looking Ahead

The continuing growth of nanotechnology,semiconductor innovation, advanced materials research, life sciences research, and in-situ microscopy will only increase the demand for precise specimen preparation.

While traditional preparation methods continue to serve important roles, FIB-SEM has established itself as the foundation of modern TEM workflows by giving researchers something that was previously difficult to achieve: fast, reliable access to exactly the right region of interest, with outstanding quality.

Further Reading

This article is based on insights from Lucille Giannuzzi's co-authored chapter FIB of TEM Specimens in Transmission Electron Microscopy (Carter & Williams, eds., Springer, 2026).
