Intuitive multimodal characterization of samples using the conventional BF/DF STEM imaging, EDS compositional analysis, and 3D STEM/EDS tomography, as well as advanced electron diffraction workflows for 4D-STEM and 3D ED measurements.
Revolutionizing Analytical STEM and 4D-STEM Characterization
Tescan TENSOR analytical STEM diffraction microscope offers a new way of TEM/STEM characterization of samples at much higher productivity compared to the traditional TEM/STEM systems on the market. Fast, multimodal characterization of nanoscale morphological, chemical, and structural properties of functional materials, thin films, synthetic particles, and other samples is achieved flawlessly due to due to high levels of automation, either by using the conventional techniques of STEM imaging and EDS compositional analysis or the advanced 4D-STEM and 3D-ED workflows, while diffraction data quality is enhanced by fully integrated and synchronized beam precession.
TEM_%26_4D-STEM_Characterization.webp?width=800&height=700&name=01-Analytical_(S)TEM_%26_4D-STEM_Characterization.webp)
TEM_%26_4D-STEM_Characterization-mobile.webp?width=500&height=500&name=01-Analytical_(S)TEM_%26_4D-STEM_Characterization-mobile.webp)
Enabling customized 4D-STEM workflows with open API

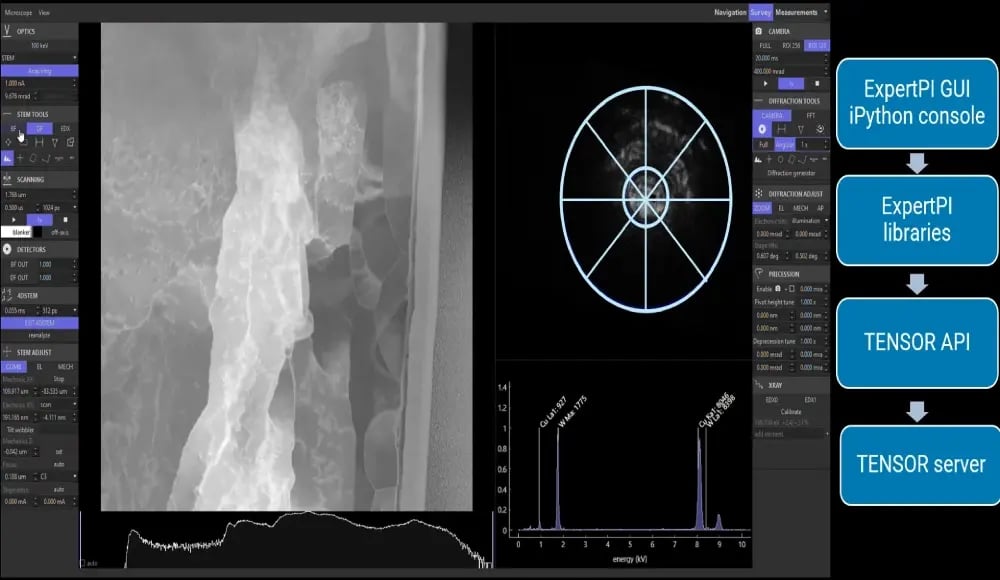

Advanced users are served with the ability to adjust the preset optimized optical properties for each STEM or 4D-STEM measurement to their preference. Furthermore, 4D-STEM data acquired with the Virtual STEM measurement is compatible with open-source computational platforms (such as LiberTEM, py4Dstem or HyperSpy) available to advanced users to develop their own 4D-STEM measurements.
%20(3).webp?width=1000&height=580&name=Figure%202(4)%20(3).webp)

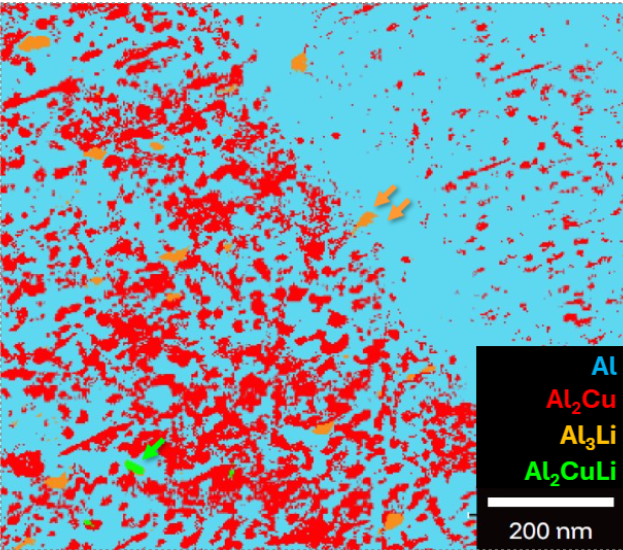

Enhancing 4D-STEM phase analysis by EDX

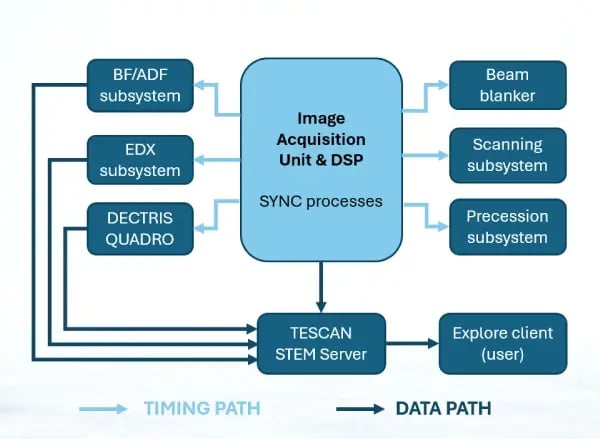

TENSOR provides natively correlated complementary analytical data due to perfect synchronization and full integration of all hardware modules. In the case of the 4D-STEM datasets, each diffraction pattern can be acquired together with an EDS spectrum, fast and perfectly synchronized. Together, diffraction and spectroscopy data encapsulate the full picture of electron–specimen interaction, from which a wide range of material properties can be derived and some inherent challenges of individual techniques overcome. This technical note shows how EDS signals can improve phase mapping when different phases have almost identical lattice parameters but different composition.
%20(1).webp?width=600&height=439&name=Figure%201(2)%20(1).webp)
Interactive phase and orientation mapping by precession-assisted 4D-STEM

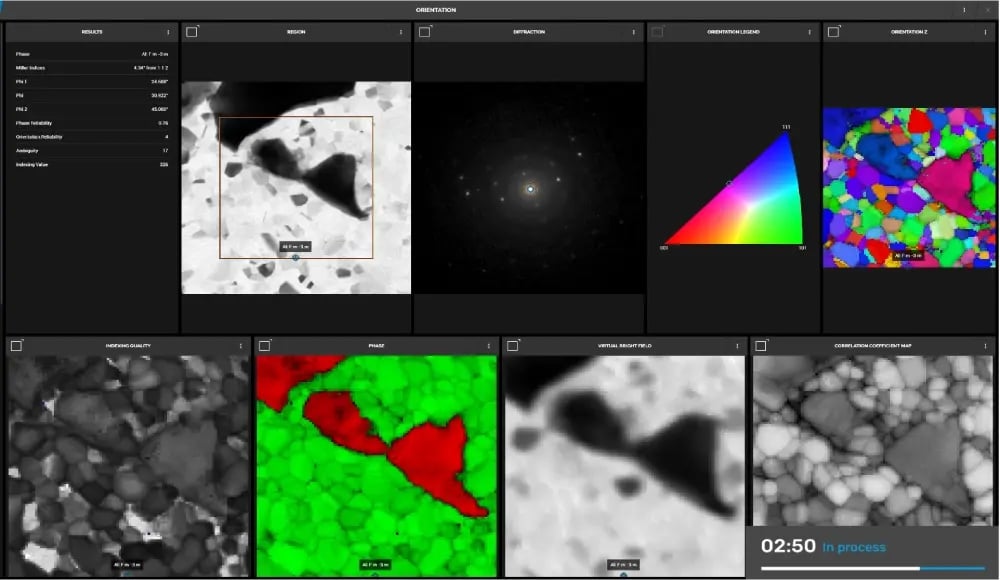

Tescan TENSOR provides 4D-STEM capabilities enabling fast nanoscale phase and orientation analysis. In this technical note, the methodology of phase and orientation analysis is described, subjected to drop casted BGO (Bi12GeO20) on evaporated aluminium. Phase and orientation of BGO is measured from a scanning diffraction dataset, by matching the acquired electron diffraction patterns with BGO and Al templates, for each pixel in the dataset. It is shown how precession electron diffraction (PED) improves the confidence of indexing, by enhancing the number of reflections in the diffraction pattern, leading to greater differentiation of the information contained in the patterns acquired from the two phases.
.webp?width=1000&height=580&name=Figure%201%20(2).webp)
Multimodal STEM characterization of nanoparticles in carbon nanotubes

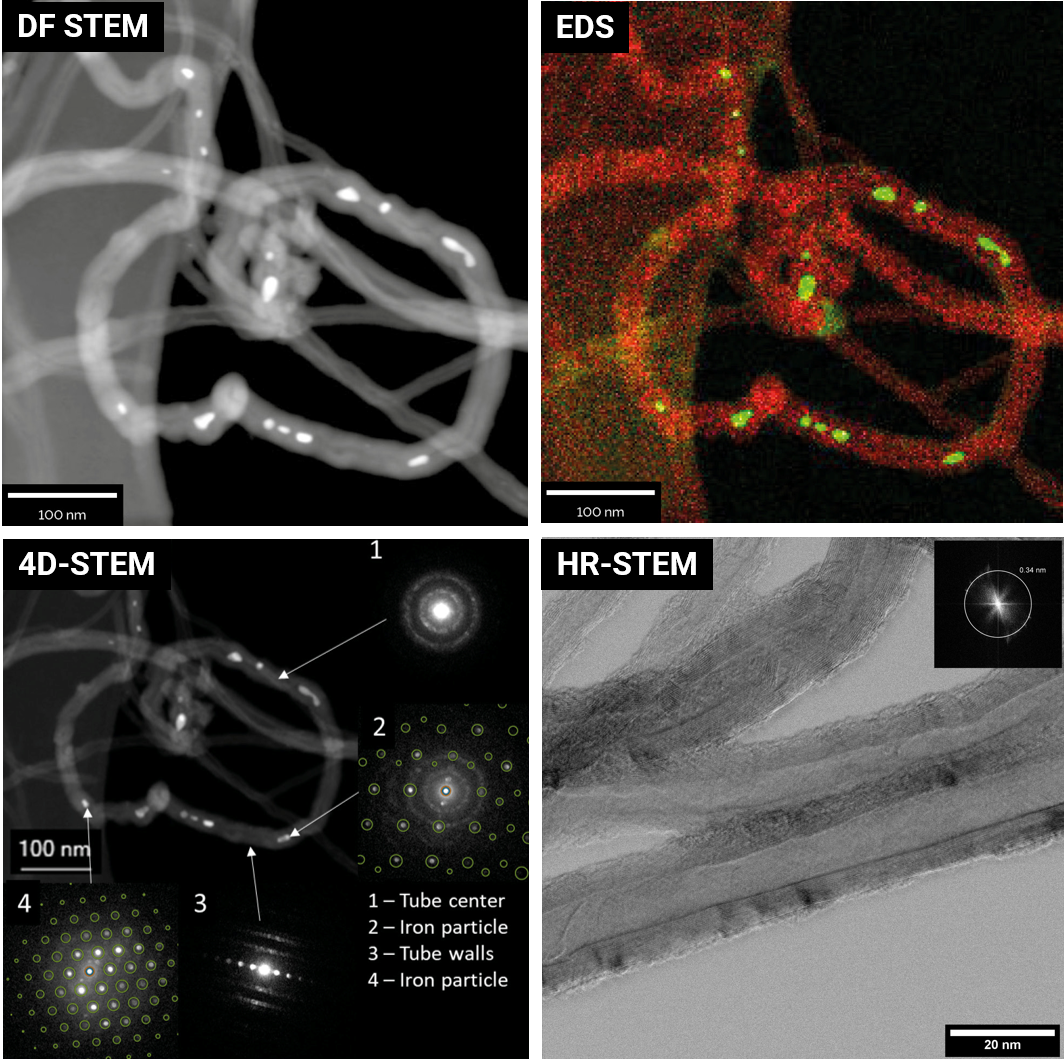

Precise identification of both structure and chemistry on the nanoscale can be leveraged to advance research into the next generation of engineering materials, across industry and academia. This Tescan TENSOR application note provides an example of multimodal chemical and crystallographic characterization of metal particles encapsulated within carbon nanotubes. By combining STEM imaging, nanobeam diffraction with crystal orientation analysis (4D-STEM) and EDX mapping, we can work towards a comprehensive understanding of this material system. This application note was produced in collaboration with Prof. Andy Brown and Dr. Zabeada Aslam of Leeds University (UK).
Nanoscale Phase Analysis in Battery Electrodes

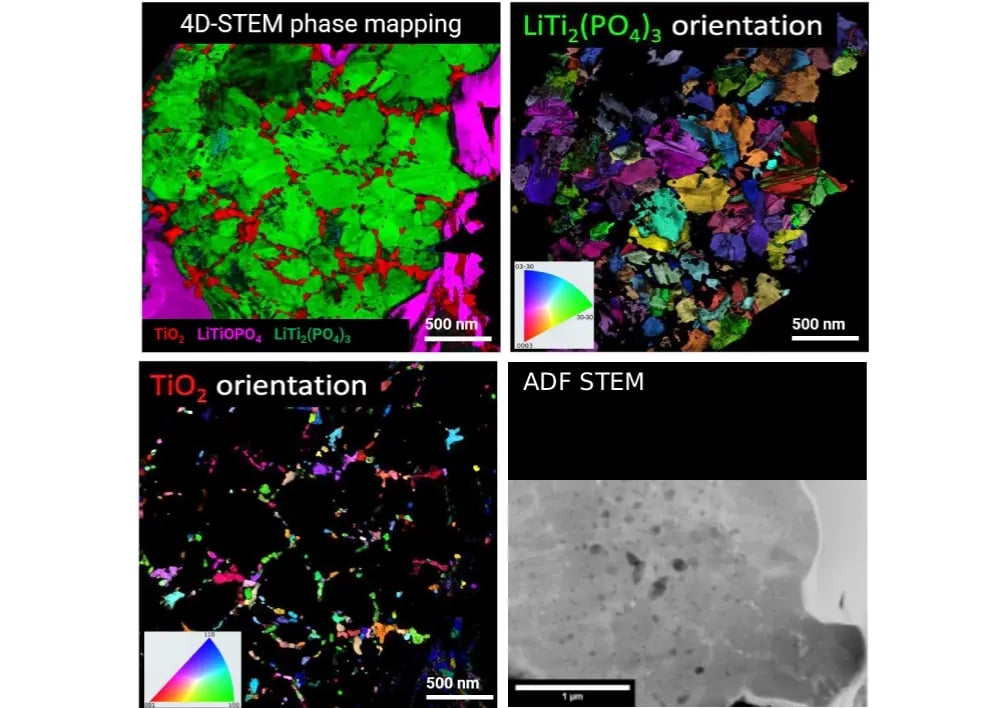

The differentiation of lithium phosphates in battery anodes is a challenging task due to the relatively similar elemental compositions of the different phosphate phases. In this application note we show how Tescan TENSOR’s 4D-STEM phase analysis, using precession electron diffraction patterns, helps to improve the differentiation of these phases and identify the penetration of crystalline TiO2 nanoparticles along LiTi(PO4)3 spindle particles. The distribution and relative orientation relationship between different phases in the battery anode can be easily deduced using this analysis. We also show how titanium oxide particles are preferentially distributed along phosphate particle grain boundaries.
.webp?width=1000&height=708&name=Nov%C3%BD%20projekt%20(17).webp)
Structural characterization of the deformation behavior in alloys

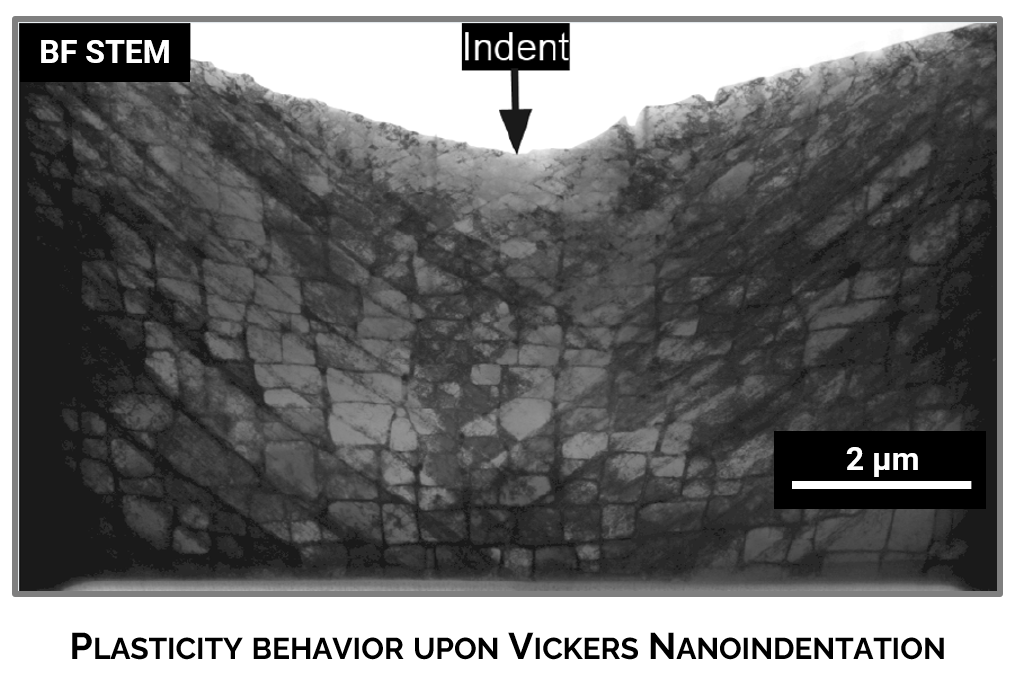

This application note presents a study into Vickers indentation induced plastic deformation in Nickel superalloys. Precession assisted 4D-STEM with automated crystal orientation analysis was used to investigate deformation induced, nanoscale grain re-orientation, in a site-specific FIB prepared specimen. Fast acquisitions, and on-the fly-processing enabled measurements to be optimized, and specimen areas to be localized, in a near real-time iterative manner, which vastly increases measurement and microscope time efficiency.
Structure determination using Precession Electron Diffraction Tomography

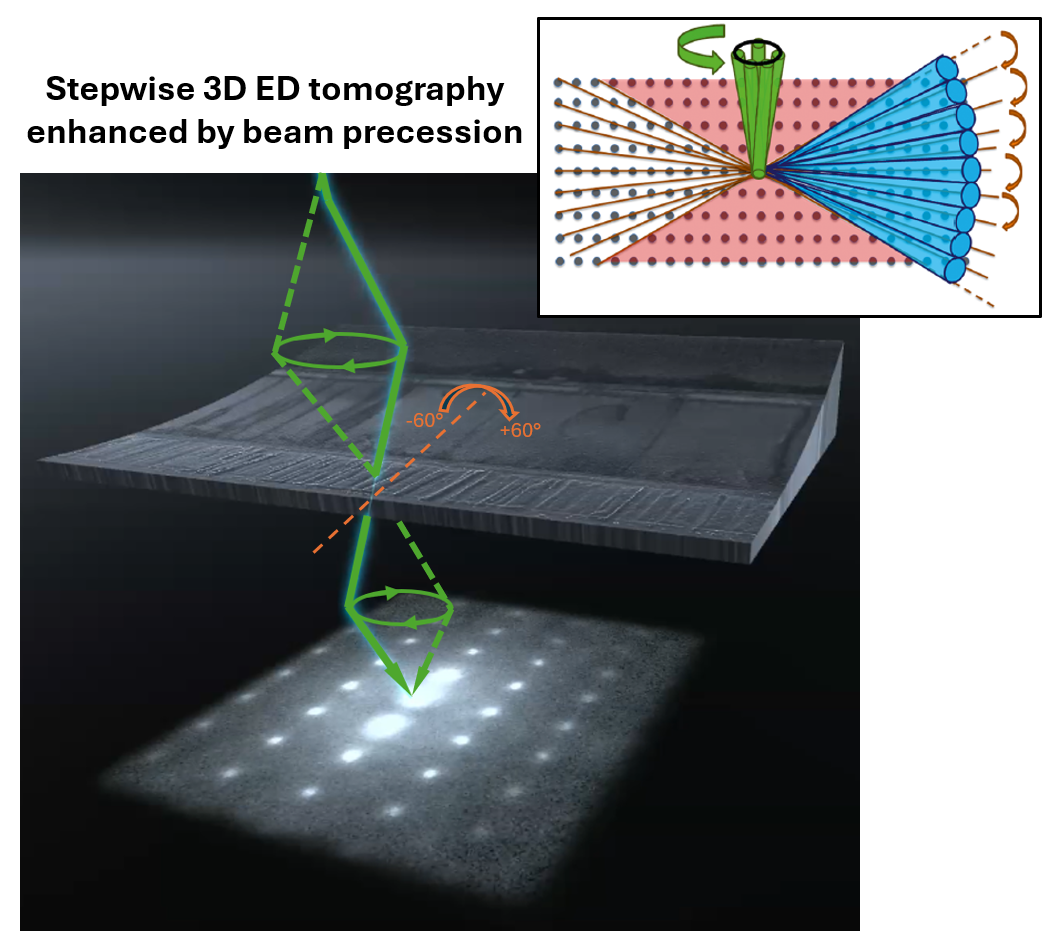

Precession electron diffraction tomography (PEDT) with Tescan TENSOR enables accurate 3D structural analysis of sub-micron crystals. By combining stepwise 3D ED data collection with beam precession and optional 4D-STEM mapping at each tilt step (5D STEM), it delivers high-quality diffraction data suitable for both kinematical and dynamical refinement — even for challenging beam-sensitive samples.
Structure determination from grains in polycrystalline samples

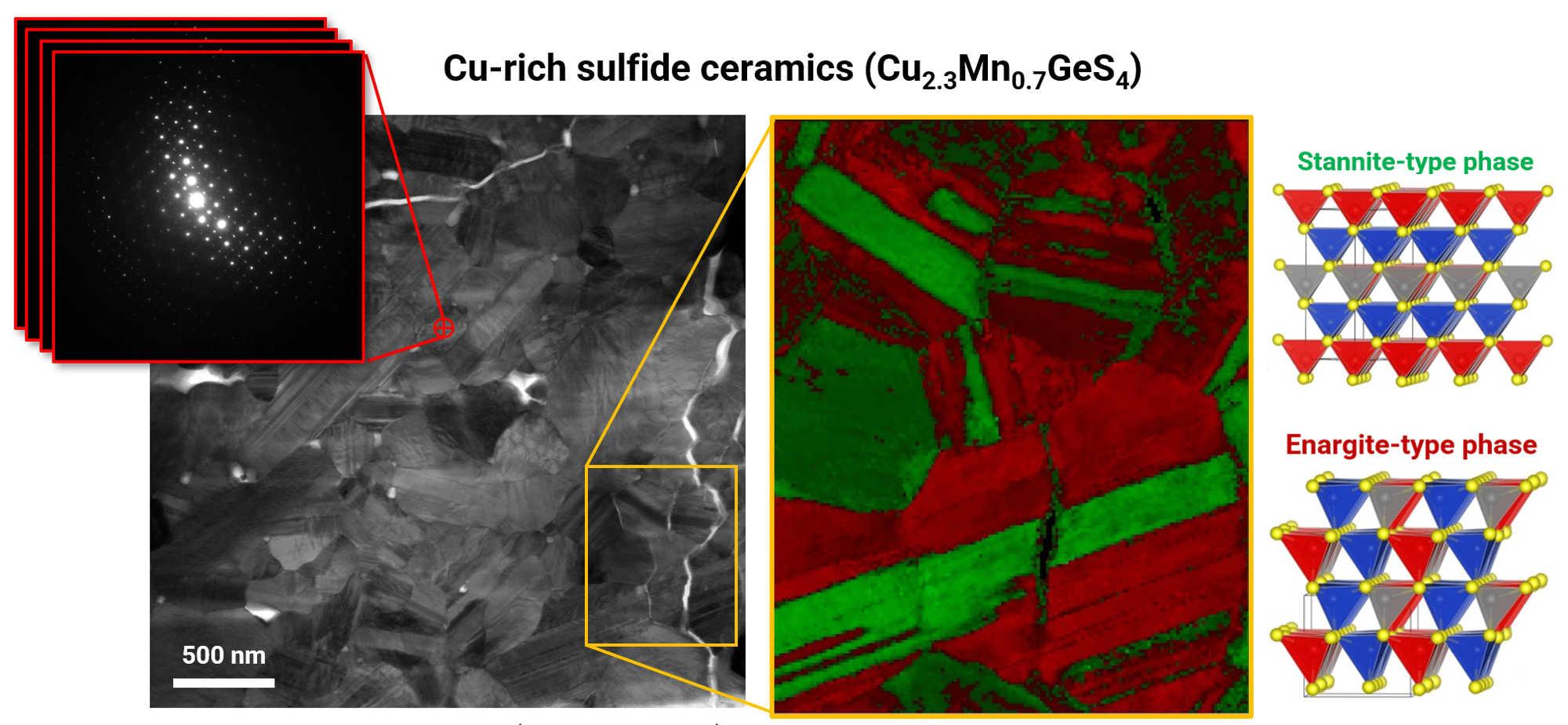

Tescan TENSOR enables material’s structure determination polycrystalline samples by using the precession electron diffraction tomography (PEDT) implementation of 3D ED. Detailed analysis of micro- and nano-scale domains in heterogeneous materials can now be therefore done from a single lamella without the need for preparation of special sample geometries or growing single crystals. The study done in partnership with the group of Prof. Phillipe Boulay from the University of Caen demonstrates how the combination of precession diffraction tomography (PEDT) and electron diffraction mapping (4D-STEM) facilitates the determination of the distribution of stannite and enargite phases in Cu-rich ceramics.
.png?width=2000&name=Figure%202(3).png)
Tescan TENSOR
A fully integrated analytical scanning transmission electron microscope that captures imaging, diffraction, and EDS data simultaneously for multimodal nanoscale characterization.
- Precession-assisted diffraction for cleaner patterns and better phase indexing
- Real-time orientation and phase mapping with nanometer spatial resolution
- Compatible with large fields of view and automated workflows for battery R&D
