Improving 4D-STEM Phase Mapping with Correlated EDX Signals

Resolve structurally similar crystalline phases with Tescan TENSOR by combining synchronized 4D-STEM and EDX signals for precise and reliable phase mapping.

Book a demo
hero
hero
Unlocked content

A New Standard in 4D-STEM Phase Analysis

When two crystalline phases have almost identical lattice parameters, their electron diffraction patterns may not differ enough for reliable identification. This makes accurate phase identification difficult and affects the reliability of materials characterization workflows.

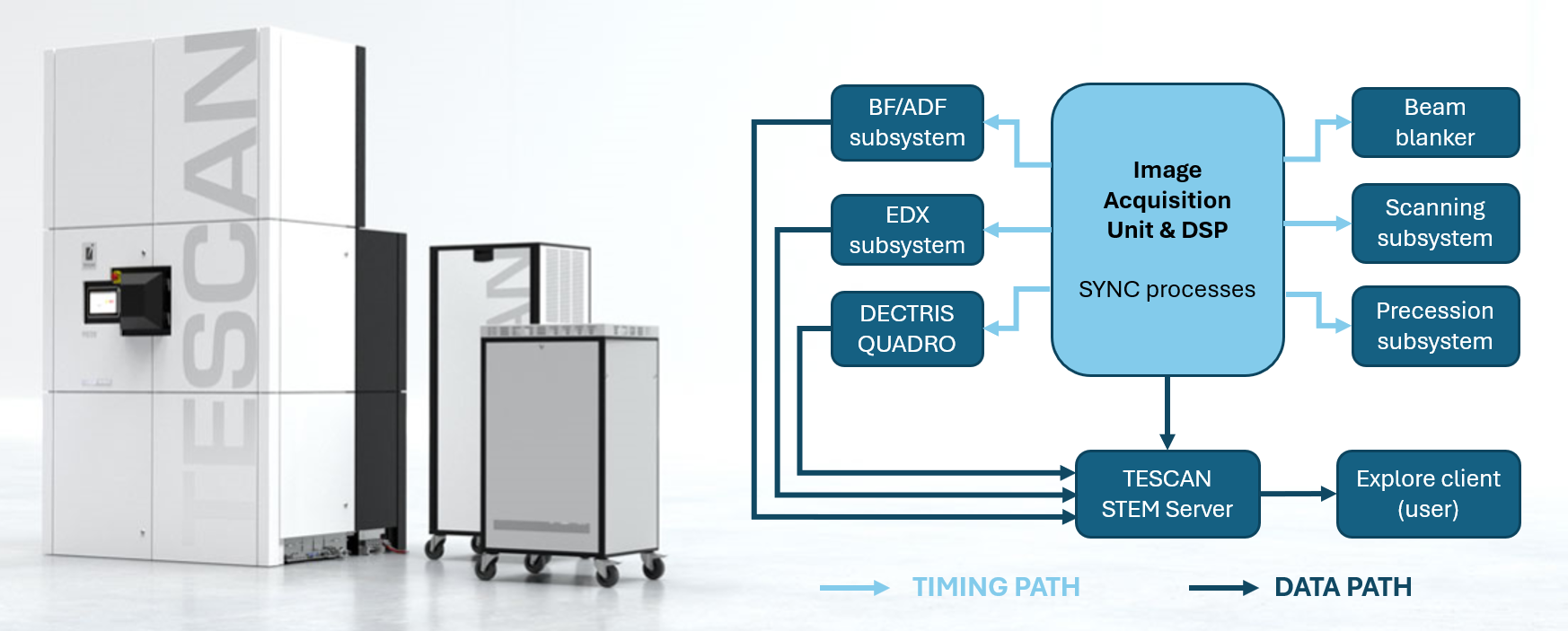

Tescan TENSOR addresses this limitation by perfectly synchronizing the acquisition of precession-assisted 4D-STEM datasets with EDX signals. Structural and chemical information is collected simultaneously at each pixel, enabling more precise segmentation of phases, even when the difference lies only within a couple of percents in their lattice spacings.

This application note demonstrates how the integration of EDX into 4D-STEM mapping helps to eliminate spurious assignments, improve grain segmentation, and enhance material statistics - all within a unified, user-accessible interface.

Why Combine 4D-STEM

with EDX?

01
Root of the Problem

Structural Ambiguity in Similar Phases

In some advanced materials, phases of different elemental composition may differ only subtly in their lattice parameters.

In such cases, electron diffraction alone may not resolve these differences, leading to high sensitivity to noise in acquired data and ultimately, in an inaccurate phase analysis.

This presents a challenge for scientists and engineers investigating alloys, thin films, or ceramics where multiple phases coexist with near-identical crystallographic structures. An incorrect phase map may affect downstream functional predictions, process development, and quality assurance.

02
Materials and Methods

A Natively Correlated Multimodal Workflow

The example study for demonstrating the power of correlated multimodal phase analysis used a polycrystalline aluminum film and gold nanoparticles. This challenging sample was analyzed using Tescan TENSOR, operating at 100 kV with the Dectris Quadro direct detector. Two datasets were collected under identical conditions:

  • Beam convergence: 1.5 mrad
  • Beam current: 1.0 nA
  • Precession:  0.8°
  • Dwell time: 10 ms

In one dataset, phase mapping was performed using 4D-STEM diffraction data only. In the other, the algorithm incorporated simultaneously acquired EDX signals to assist template matching of the 4D-STEM data. The ExploreTM software interface enabled straightforward inclusion of the correlated EDX signals in the 4D-STEM data analysis and the phase map calculation.

03
Results and Discussion

Improved Phase Differentiation with Elemental Composition

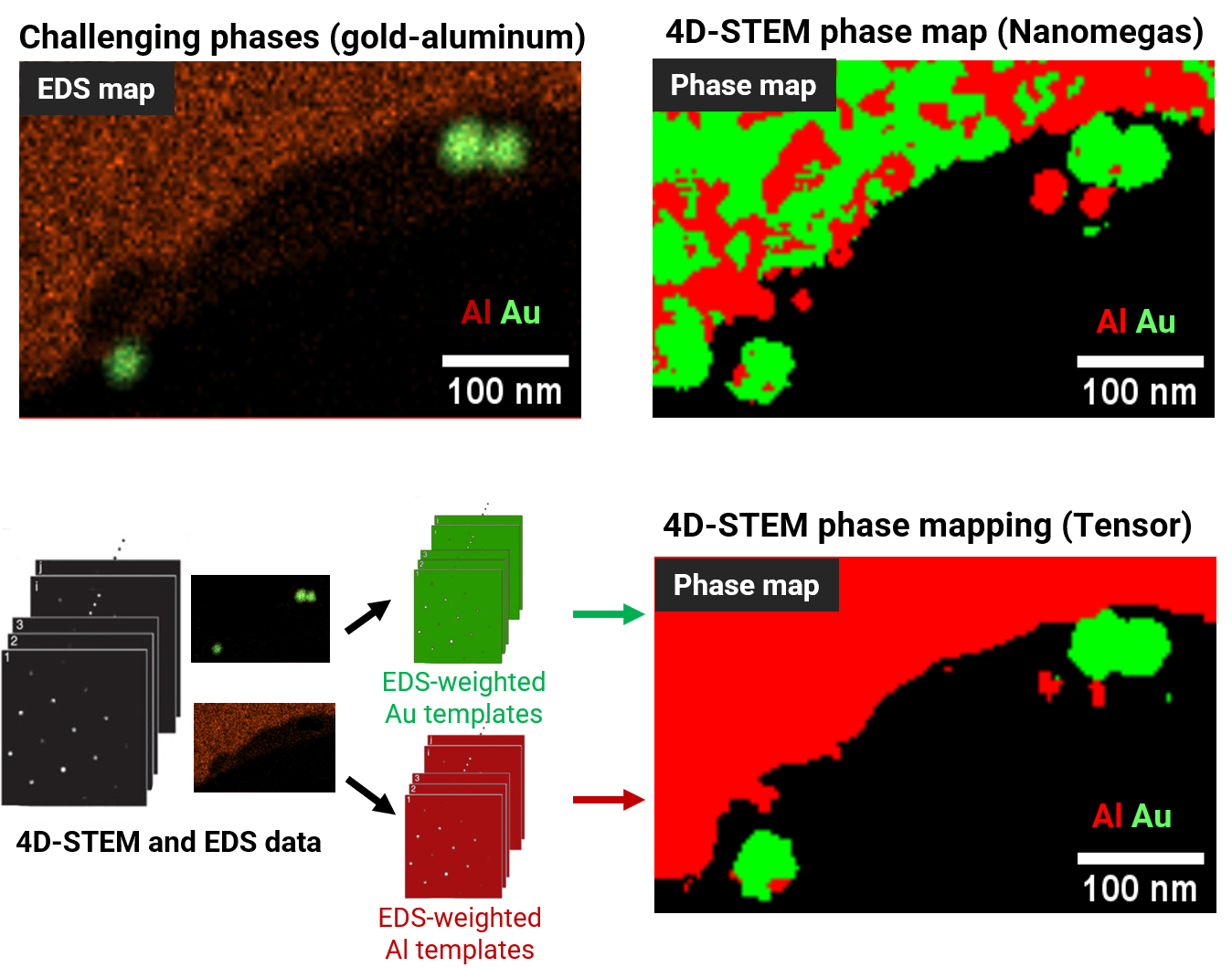

The comparison revealed that using EDX data in the mapping process eliminated incorrect phase assignments. Regions of pure aluminum were no longer labeled as gold, and gold nanoparticles were correctly segmented.

This correction is not just visual; it also impacts quantitative analysis. Without EDX signals, phase maps can be fragmented by individual grains and consequently, the resulting statistical metrics skewed. The correlative 4D‑STEM/EDX method eliminates such influence of grains in the material, supporting accurate phase analysis that reflects the true material composition.

The approach scales to materials with three or more crystalline phases, providing reliable separation when neither EDX nor diffraction alone can deliver robust and accurate results.

GET IN Touch

Contact us

Get the most out of Tescan

This is more than information; it's an advantage. We've compiled our technical whitepapers, detailed product flyers, and on-demand webinars to provide you with the knowledge that makes a real difference. Sign up now to access the insights you need to make an impact.

Tescan Instruments & Technology

Used in This Workflow

Tescan TENSOR

A fully integrated, synchronized scanning transmission electron microscope that simultaneously captures morphology, chemical composition, and internal structure for comprehensive nanoscale characterization.

  • 4D-STEM records the lattice structure of crystalline grains in electron diffraction patterns.
  • ADF-STEM visualizes sample morphology through differences in electron scattering.
  • EDS-STEM maps chemical composition based on characteristic X-ray emission.
  • Beam precession enhances diffraction data quality for more precise structural analysis.
TENSOR_1

Explore more solutions

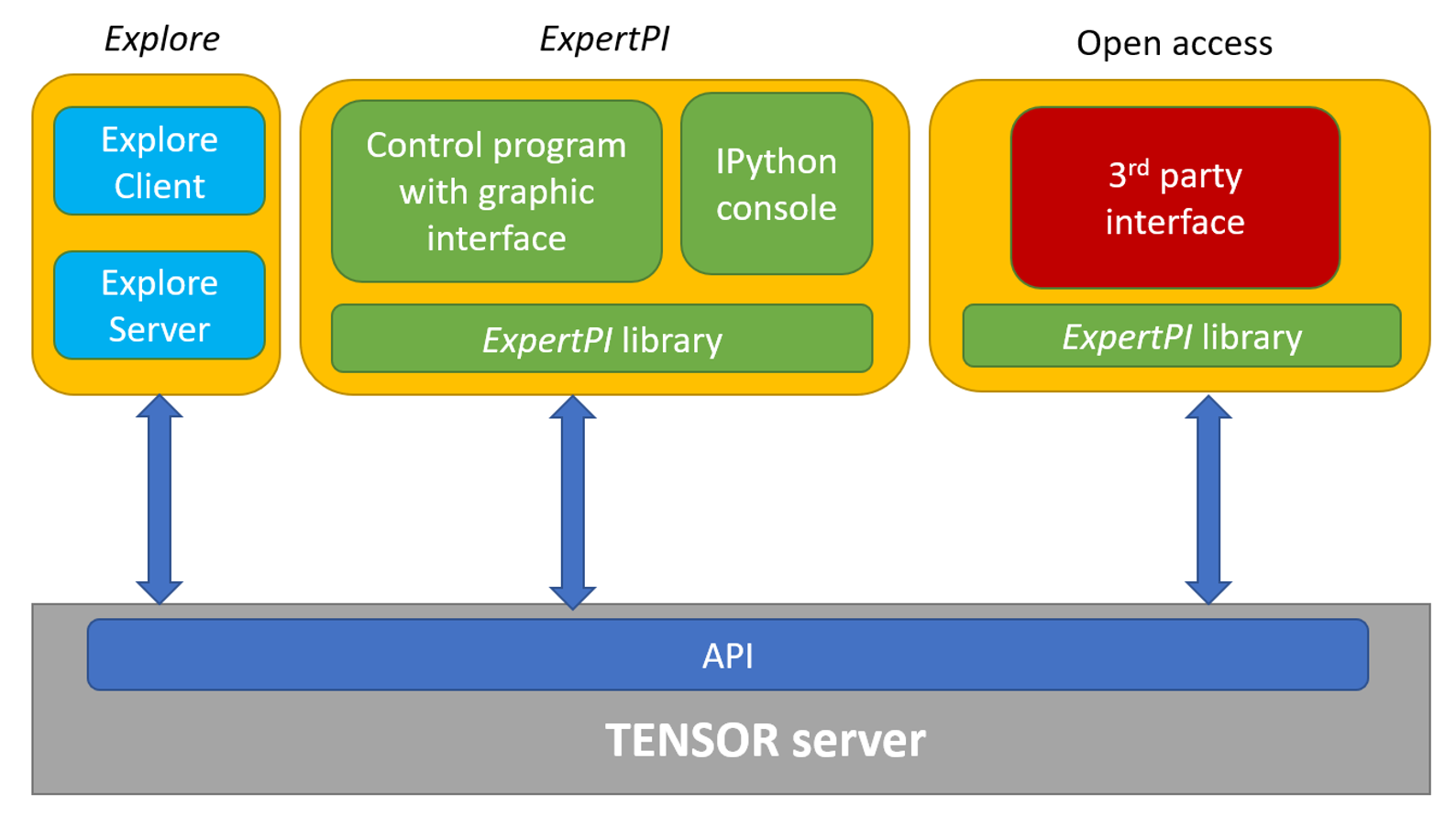

Flexible Development with ExpertPI™

Streamline Analytical STEM Workflows for 4D‑STEM and Electron Diffraction with Tescan

Use Tescan TENSOR with integrated beam precession to perform analytical STEM measurements either with existing automated workflows or develop new workflows with own advanced methods.

Read more
Resolve Composition and Crystallinity

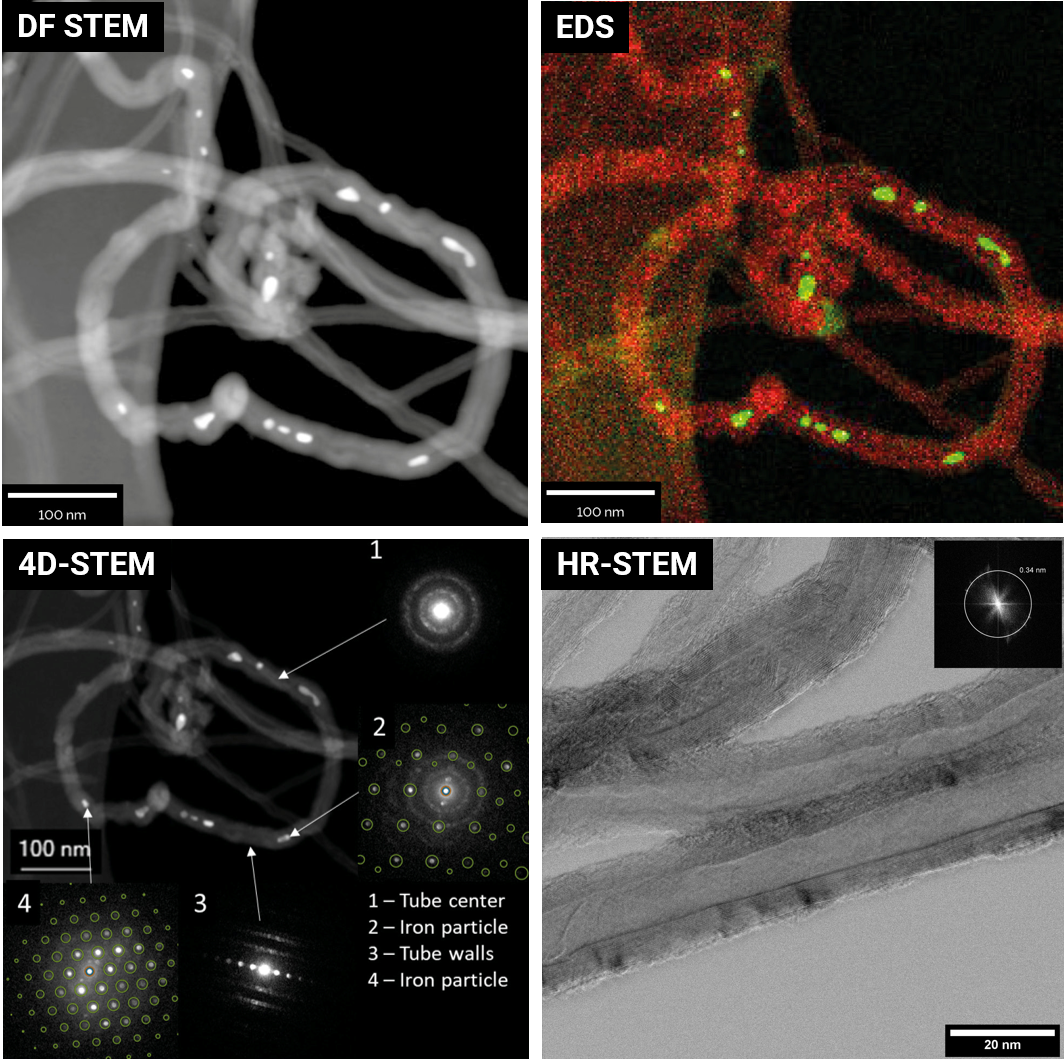

Structural and Chemical Analysis of Encapsulated Nanoparticles in Carbon Nanotubes

 Multimodal 4D-STEM and EDX characterization of metal particles at the nanoscale.

Read more

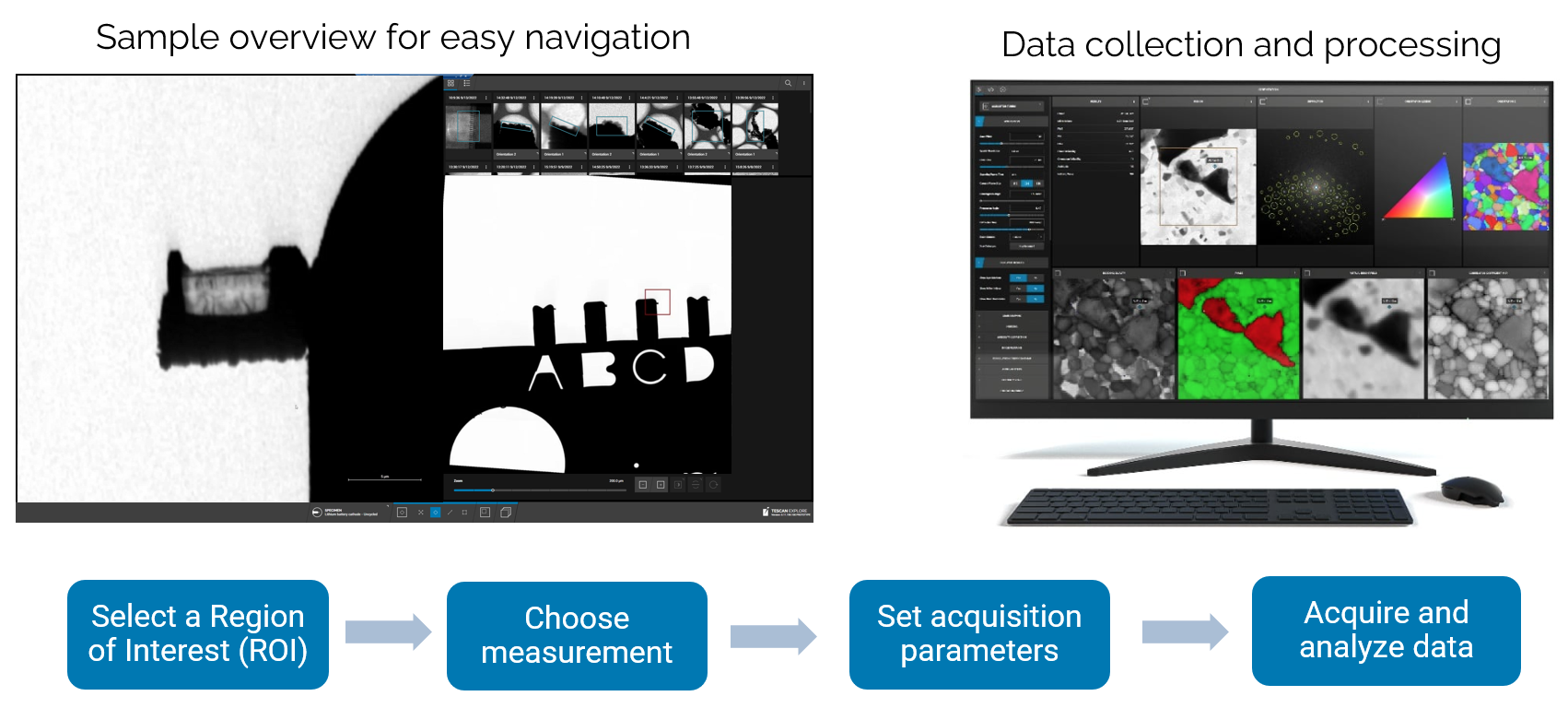

Streamline 4D-STEM Workflows with Integrated Navigation and Processing

Enable High-Precision 4D-STEM Measurements with Beam Precession

Use Tescan TENSOR™ with real-time precession and a hybrid-pixel detector to deliver precise, reproducible 4D-STEM diffraction data in complex nanoscale devices.

Read more

Nanoscale Orientation Mapping in Deformed Ni-Based Superalloys

 Crystallographic analysis of deformation cells and kink bands using TESCAN TENSOR.

Read more
Analyze the Distribution of Unknown Phases

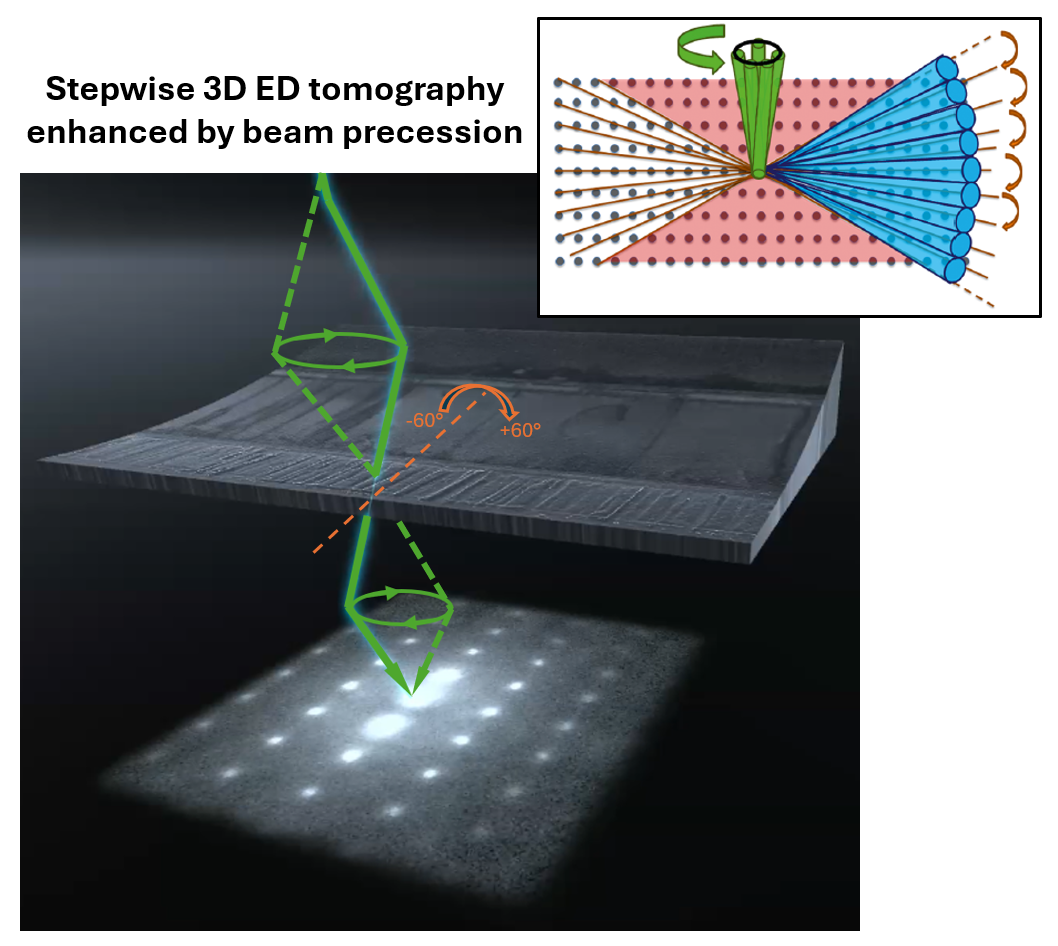

Phase and Orientation Analysis of Cu-Rich Sulfide Ceramics Using 3D ED and 4D-STEM on a Single Lamella
